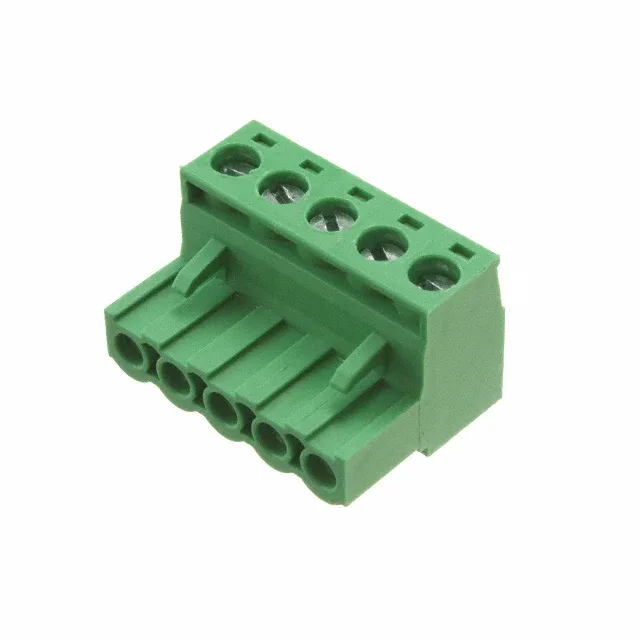

Adam Tech EBHA-05-C
MPNEBHA-05-C
Active
EURO BLOCK 5P
$1.77Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesEB
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | EB |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Plug wire entry | 180° |
| Wire strip length | 7-8mm |
| Wire gauge or range - AWG | 14-28 AWG |
| Wire gauge or range - mm2 | 2.5mm² |
| Operating temperature | -40°C ~ 105°C |
| Color | Green |
| Contact material | Phosphor Bronze |
All specifications
| Parameter | Value |
|---|---|
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.594\" (15.09mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Features | Retention Latches (Non-Wire Side) |
| Screw size | M3 |
| Torque - screw | 0.5 Nm (4.4 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Leaf Spring, Wire Guard |
| Positions | 5 |
| Positions per level | 5 |
| Contact mating finish | Nickel |
