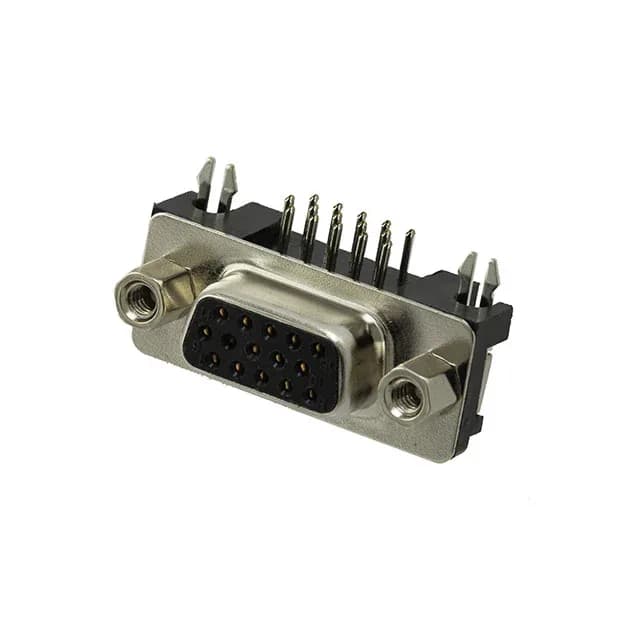

Adam Tech HD15-SN-25
MPNHD15-SN-25
Active
CONN D-SUB HD RCPT 15P R/A SLDR
$1.9600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesHD
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | HD |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle, Female Sockets |
| Voltage rating | 250VAC |
| Current rating | 3A |
| Shell size, connector layout | 1 (DE, E) High Density |
| Color | Black |
| Contact material | Brass |
| Dielectric material | Polybutylene Terephthalate (PBT), Glass Filled |
| Shell material, finish | Steel, Tin Plated |
| Material flammability rating | UL94 V-0 |
| Package | Tray |
All specifications
| Parameter | Value |
|---|---|
| Features | Board Lock |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Mating Side, Female Screwlock (4-40) |
| Rows | 3 |
| Backset spacing | 0.121\" (3.08mm) |
| Positions | 15 |
| Contact finish thickness | Flash |
