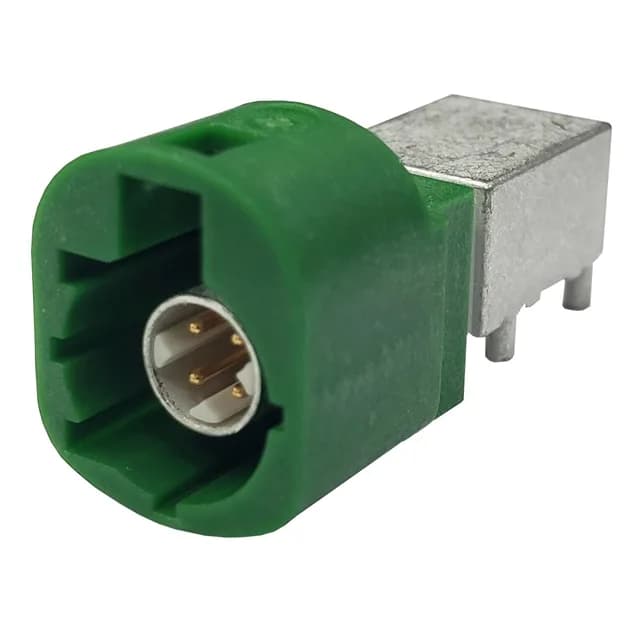

HSD-04E-S-PRA-SG-C1-TR
MPNHSD-04E-S-PRA-SG-C1-TR
Active
$3.3700Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | HSD |
| Mounting | Through Hole, Right Angle |
| Connector type | HSD®, Fakra, Quadraxial |
| Fastening type | Latch Lock |
| Frequency - max | 2 GHz |
| Operating temperature | -40°C ~ 105°C |
| Body material | Zinc Alloy |
| Housing color | Green |
| Dielectric material | Polyamide (PA), Nylon |
| Center contact material | Brass |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Code E |
All specifications
| Parameter | Value |
|---|---|
| Impedance | 100 Ohms |
| Body finish | Tin |
| Mating cycles | 25 |
| Insertion loss | 0.10dB |
| Number of ports | 1 |
| Shield termination | Solder |
| Contact termination | Solder |
| Center contact plating | Gold |
