Adam Tech ICM-324-1-GT-HT
MPNICM-324-1-GT-HT
Active

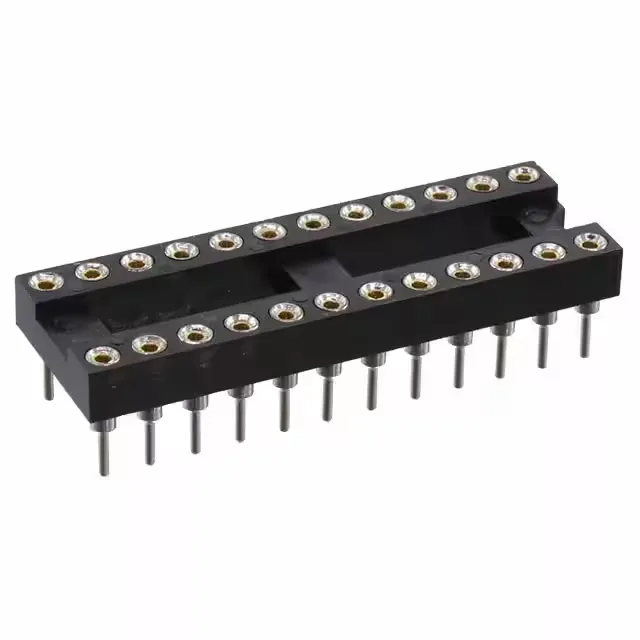

MACHINE PIN SOCKET, IC, DIP, 24P
$1.31Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesICM
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Series | ICM |
| Mounting | Through Hole |
| Current rating | 3 A |
| Operating temperature | -40°C ~ 105°C |
| Housing material | Polyphenylene Sulfide (PPS) |
| Contact material - post | Beryllium Copper |
| Contact material - mating | Beryllium Copper |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
All specifications
| Parameter | Value |
|---|---|
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 4mOhm |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Termination post length | 0.110\" (2.78mm) |
| Contact finish thickness - mating | Flash |
| Number of positions or pins | 24 (2 x 12) |
