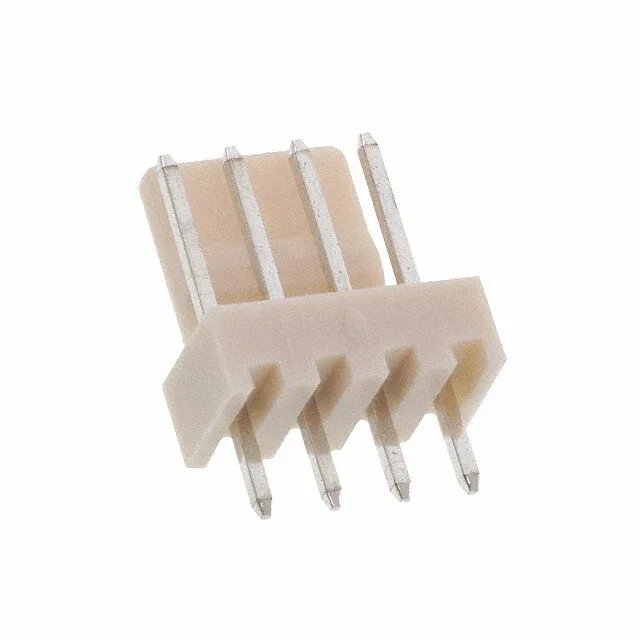

Adam Tech LHA-04-TS
MPNLHA-04-TS
Active
CONN HEADER VERT 4POS 2.54MM
$0.19Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesLHA
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — typically 7–15 days door-to-door
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | LHA |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | 3A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Brass |
| Insulation color | Ivory |
| Insulation height | 0.134\" (3.40mm) |
| Insulation material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-2 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Overall contact length | 0.559\" (14.20mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.291\" (7.40mm) |
