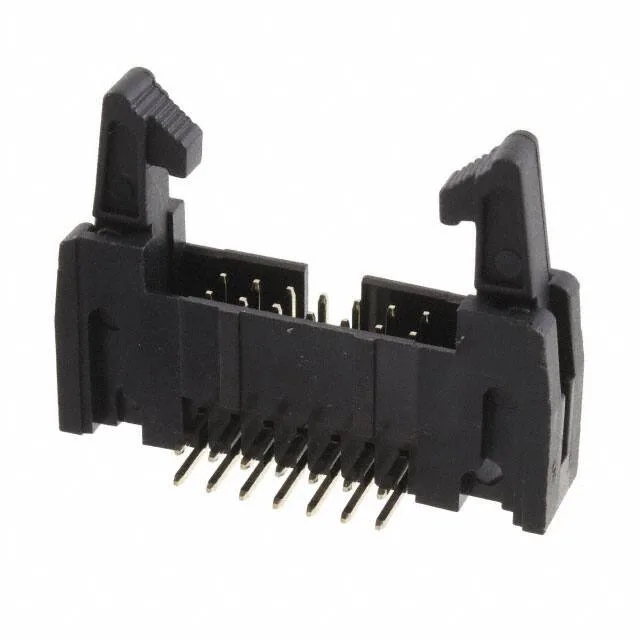

Adam Tech MHR-14-HUAL
MPNMHR-14-HUAL
Active
CONN HEADER R/A 14POS 2.54MM
$1.46Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMHR
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MHR |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Long |
| Voltage rating | 250VAC |
| Current rating | 3A |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.331\" (8.40mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 14 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Gold |
| Contact length - post | 0.142\" (3.60mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | Flash |
