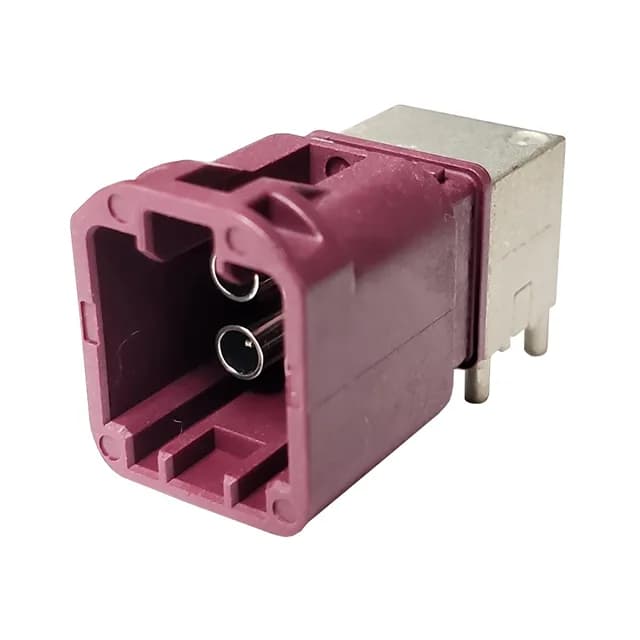

MHSD-04D-BM-PRA-TR
MPNMHSD-04D-BM-PRA-TR
Active
$6.1100Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MHSD |
| Mounting | Through Hole, Right Angle |
| Connector type | Miniature Coaxial, Fakra, Quadraxial |
| Fastening type | Latch Lock |
| Frequency - max | 9 GHz |
| Operating temperature | -40°C ~ 105°C |
| Body material | Zinc Die Cast |
| Housing color | Violet, Claret |
| Dielectric material | Thermoplastic |
| Center contact material | Brass |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Code D |
All specifications
| Parameter | Value |
|---|---|
| Impedance | 50 Ohms |
| Body finish | Tin |
| Mating cycles | 25 |
| Insertion loss | 0.75dB |
| Number of ports | 1 |
| Shield termination | Solder |
| Contact termination | Solder |
| Center contact plating | Silver |
