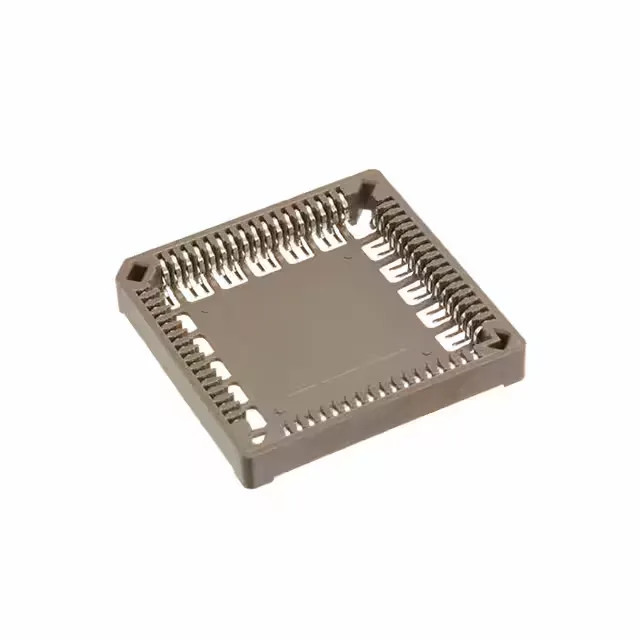

Adam Tech PLCC-68-AT-SMT
MPNPLCC-68-AT-SMT
Active
CONN SOCKET PLCC 68POS PHOS BRNZ
$1.45Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPLCC
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | PLCC |
| Series | PLCC |
| Mounting | Surface Mount |
| Current rating | 1 A |
| Operating temperature | -55°C ~ 105°C |
| Housing material | Polybutylene Terephthalate (PBT), Glass Filled |
| Contact material - post | Phosphor Bronze |
| Contact material - mating | Phosphor Bronze |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Closed Frame |
| Termination | Solder |
All specifications
| Parameter | Value |
|---|---|
| Pitch - post | 0.050\" (1.27mm) |
| Pitch | 0.050\" (1.27mm) |
| Contact resistance | 30mOhm |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Termination post length | 0.008\" (2.03mm) |
| Contact finish thickness - post | 80.0µin (2.03µm) |
| Contact finish thickness - mating | 80.0µin (2.03µm) |
| Number of positions or pins | 68 (4 x 17) |
