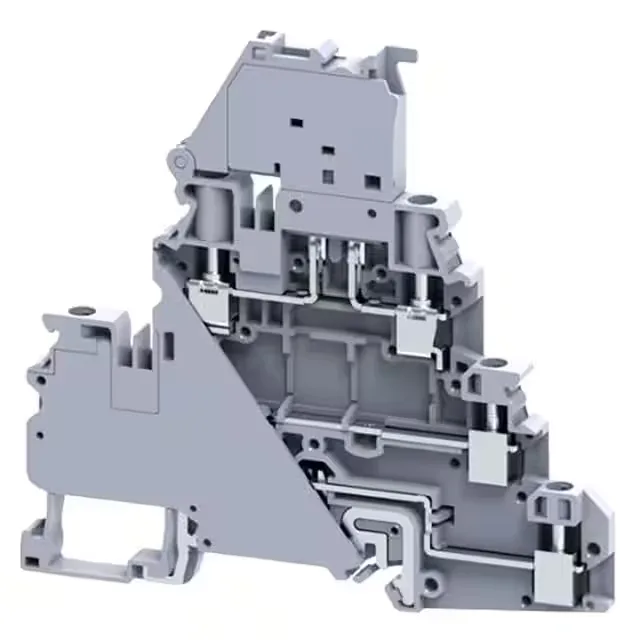

Altech Corporation CYDLGF4LR
MPNCYDLGF4LR
Active
DIN TERM BLK SCREW FUSE
$13.22Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCY
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Disconnect, Isolated (2) |
| Series | CY |
| Fuse type | 5mm x 20mm, 5mm x 25mm |
| Disconnect type | Fuse |
| Voltage - UL | 300V |
| Voltage - IEC | 1000V |
| Current - UL | 10 A |
| Current - IEC | 10 A |
| Terminal - width | 6.0mm |
| Wire gauge or range - AWG | 10-24 AWG |
| Wire gauge or range - mm2 | 0.2-4mm² |
| Color | Gray |
| Material - insulation | Polyamide (PA66), Nylon 6/6 |
| Package | Bulk |
| Number of levels | 3; 2 Connected, 1 Grounded |
| Stripping length | 9mm |
| Termination style | Screw |
| Positions | 5 |
