American Electrical Inc. KL319100
MPNKL319100
Active

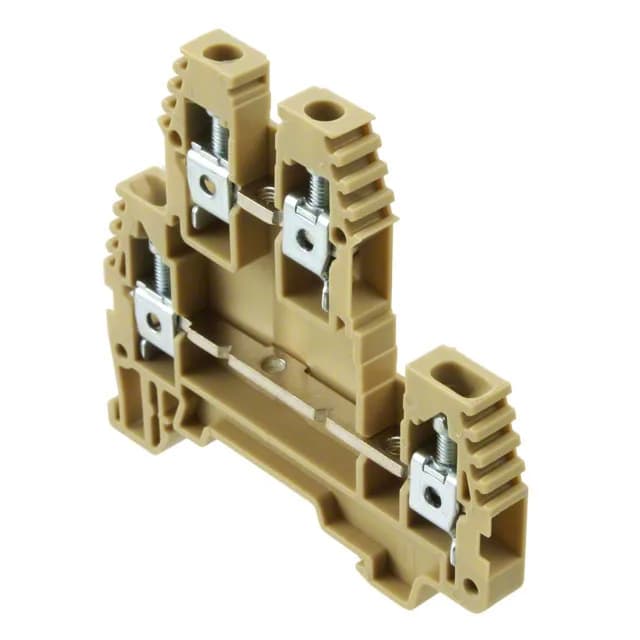

CONN TERM BLK FEED THRU 10-26AWG
$2.2300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPIK 4N
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Feed Through |
| Series | PIK 4N |
| Voltage - UL | 300V |
| Voltage - IEC | 500V |
| Current - UL | 32 A |
| Current - IEC | 32 A |
| Terminal - width | 6.0mm |
| Wire gauge or range - AWG | 10-26 AWG |
| Wire gauge or range - mm2 | 0.5-6mm² |
| Color | Beige |
| Material - insulation | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-2 |
| Package | Box |
| Number of levels | 2 |
| Stripping length | 9mm |
| Termination style | Screw |
| Positions | 4 |
