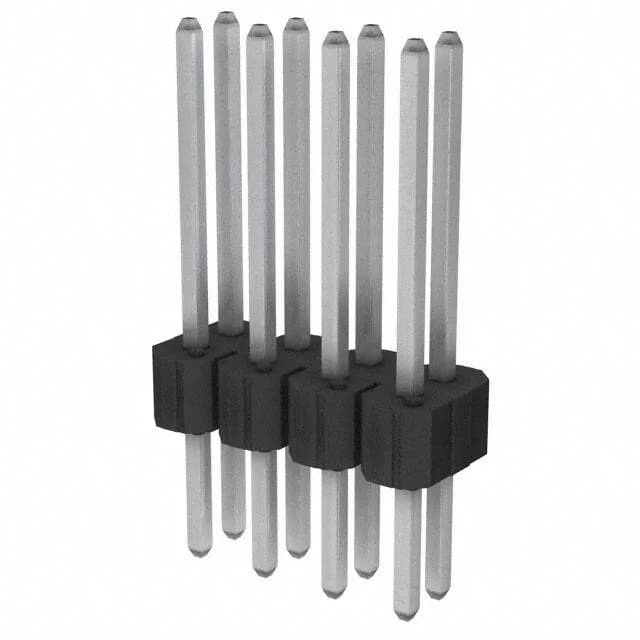

The 79821 is the 8-position member of the BERGSTIK II series. The dual-row layout with 0.100-inch row spacing means it follows the standard 0.100-inch grid — board footprints, routing density, and keep-out zones are well-established for this pitch class. At 5 A per circuit the current rating sits comfortably above typical signal levels; the tin plating on both sides means this is optimised for durability over high-speed performance.
Mates with the matching BERGSTIK II dual-row receptacle housing at 8 circuits. Square contact pins and push-pull fastening suit the through-hole solder joint as the primary retention mechanism — the pin fits and the hole keeps it. Contact length of 0.200 inch (5.08 mm) provides adequate solder fill in standard through-hole processes.
Listed Active — quoted to BOM quantity against an RFQ. No official successor or cross-reference has been listed for this position count in the BERGSTIK II series.
The base product number is 79821, supplied in a bag package. Flammability is rated UL94 V-0.
