Board layout fit

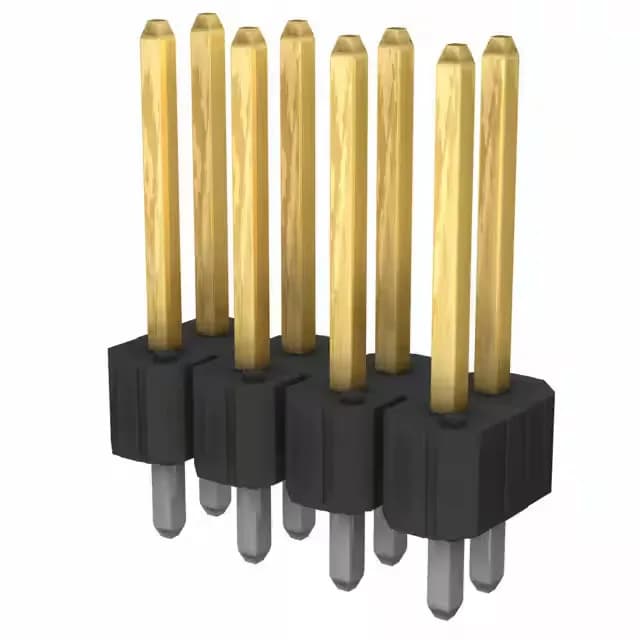

The 86832-108HLF: Through-hole tails on 0.100" row spacing accept a standard footprint — the same land pattern as most dual-row 2.54 mm headers in this position-count range. The 0.100" (2.54 mm) insulation height keeps the mated interface flush with adjacent components on a tight mezzanine stack. Unshrouded pins mean the header footprint is open on all four sides; verify side-stack clearance against adjacent connectors on the daughter card.
What the ratings mean for the circuit
5 A per contact is the per-circuit limit; the phosphor-bronze beam and the 0.76 µm gold plating handle repeated mating without tin whiskers or fretting wear. The 110 V rating governs the primary insulation creepage path between adjacent rows at 0.100" spacing; confirm the board coating and spacing meet your creepage requirements at operating voltage before committing the BOM line.
Mating half
This is the male pin header — the mated assembly requires the matching BERGSTIK II dual-row receptacle housing with IDC or crimp terminals (Amphenol FCI 86832 series). The push-pull fastening keeps the header seated during board-level vibration, but verify the receptacle housing has a positive latch or TPA to lock the terminals before field deployment.
