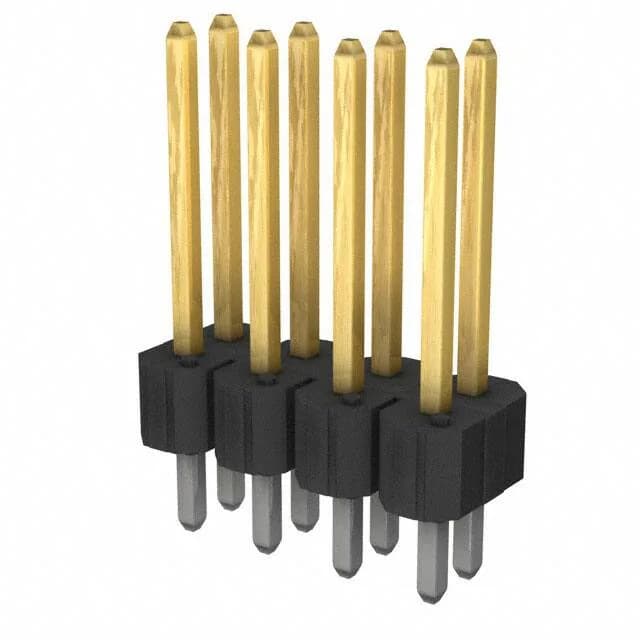

The Amphenol FCI 86837-108HLF is the 8-position member of the BERGSTIK II dual-row header series — an unshrouded board-to-board header with 0.100" (2.54 mm) pitch and square male pins designed for through-hole soldering into a PCB. Rated 5 A per contact at 110 V, it carries 30 µin (0.76 µm) gold or Gold GXT plating on the mating interface — the thicker precious-metal deposit gives the contact pair the durability needed for repeated mate/unmate cycles versus tin-plated equivalents. The push-pull fastening type and 0.380" (9.65 mm) mating length mean it requires the matching BERGSTIK II dual-row receptacle housing to engage properly; the square pin profile and unshrouded header body make mis-mate prevention dependent on the housing keying. Dual-row at 0.100" (2.54mm) row spacing, all positions loaded, black UL94 V-0 insulator, 0.100" (2.54mm) insulation height, 8 positions.
Amphenol FCI BERGSTIK II dual-row header, 8 positions, 0.100" (2.54 mm) pitch, through-hole mount, 5 A per contact, 110 V, push-pull push-pull fastening, gold contact finish, UL94 V-0 black insulator.
$0.3951Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Voltage | 110 V |
| Current | 5 A |
| Mounting | Through Hole |
| Connector size | Header |
| Contact material | Phosphor Bronze |
| Pitch | 0.100" (2.54 mm) |
| Package | Bag |
| Positions | 8 |
| Shrouding | Unshrouded |
| Orientation | Board to Board |
| Termination | Solder |
| Gender (Contact) | Male Pin |
| Contact plating | Gold or Gold, GXT™ |
| Locking (Fastening) | Push-Pull |
| Rows | 2 |
Product details
Frequently asked questions
What does the 86837-108HLF mate with?
It mates with the matching BERGSTIK II dual-row receptacle housing that accepts the 0.100" pitch dual-row header pattern — confirm the housing position count matches the 8-position header.
What is the contact plating on 86837-108HLF?
Gold or Gold GXT at 30 µin (0.76 µm) on the mating interface, which supports repeated mating cycles better than tin plating at the same current rating.
What current and voltage can the 86837-108HLF carry?
5 A per contact at up to 110 V — a single-contact rating; circuit count does not change the per-contact limit.
