The Amphenol FCI (Amphenol ICC) 86837-112HLF is the 12-position member of the BERGSTIK II dual-row header family, a board-to-board interconnect rated 5 A per circuit at a 0.100 inch (2.54 mm) pitch. Square male pins on 0.100 inch row spacing mate through a push-pull action with the matching BERGSTIK II receptacle housing, and all 12 positions are populated in this part-number variant. The contact finish is gold or Gold GXT at 30 µin (0.76 µm) on the mating face, over a phosphor bronze base — the 30 µin grade signals reconnection duty rather than a single-mate install, which the UL94 V-0 black housing confirms for higher-temperature or flame-retardance-required environments. The 110 V rating is the limiting spec for higher-voltage board-to-board applications — verify against the system rail before committing. The 0.380 inch (9.65 mm) mating pin length and 0.100 inch (2.54 mm) insulation height govern stack-height planning; the 0.600 inch overall contact length and 0.120 inch (3.05 mm) tail extension set the through-hole drill and paste mask for the board footprint. This part ships in a bag, not on tape — for reel-fed placement lines the buyer should confirm whether the manufacturer or distributor offers tape-and-reel packaging. No AVL alternate exists, so a second-source qualification is recommended before production use.

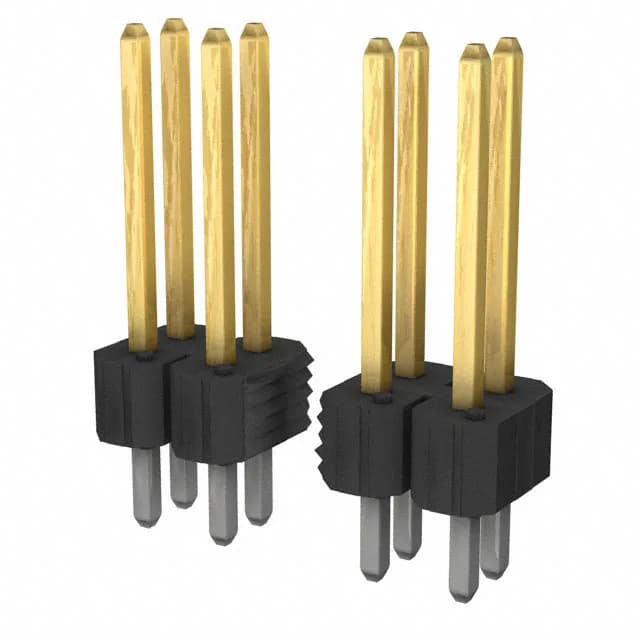

Amphenol FCI BERGSTIK II 86837-112HLF dual-row board-to-board header, 12 positions, 0.100 inch (2.54 mm) pitch, 5 A per circuit, gold-plated phosphor bronze contacts (30 µin), push-pull mating, through-hole solder termination, UL94 V-0 black housing, 110 V rating, bag package.
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Voltage | 110 V |
| Current | 5 A |
| Mounting | Through Hole |
| Connector size | Header |
| Contact material | Phosphor Bronze |
| Pitch | 0.100" (2.54 mm) |
| Package | Bag |
| Positions | 12 |
| Shrouding | Unshrouded |
| Orientation | Board to Board |
| Termination | Solder |
| Gender (Contact) | Male Pin |
| Contact plating | Gold or Gold, GXT™ |
| Locking (Fastening) | Push-Pull |
| Rows | 2 |
Product details
Frequently asked questions
What is the closest pin-compatible alternative to 86837-112HLF?
No official alternate or successor order code appears in the record. Verify same-pitch and same-position alternatives from the BERGSTIK II series through an RFQ; the base product number 86837 spans multiple position counts and may share a compatible footprint within that family.
What connector style is the 86837-112HLF listed as?
Board to Board — this is a header intended for board-to-board or board-to-receptacle stacking, not a wire-to-board or panel-mount connector.
What series does the 86837-112HLF belong to?
BERGSTIK II — a dual-row 0.100 inch pitch header series from Amphenol FCI/Amphenol ICC. The 12-position dual-row variant carries 5 A per circuit with gold or Gold GXT plating.
