The 87900-106HLF: Contact plating is gold or Gold GXT at 30.0 µin (0.76 µm) — a thickness well above the typical flash grade and sufficient for multiple mating cycles without the immediate wear concern of thin tin. The 0.720" (18.29 mm) mating length gives the pin substantial engagement depth in the receiving receptacle, and the push-pull fastening type means the connection seats without a locking clip — so it is best suited for applications where vibration is controlled or the connector is seated once and left. The header is unshrouded and all 6 positions are loaded, so the buyer confirms the mating half carries the matching 2-row 0.100" pitch receptacle and that the board footprint accommodates the 0.120" (3.05 mm) tail length. The black polyamide housing meets UL94 V-0 flammability, and the insulation height of 0.100" (2.54 mm) sets the mated stack height for board-to-board spacing calculations.

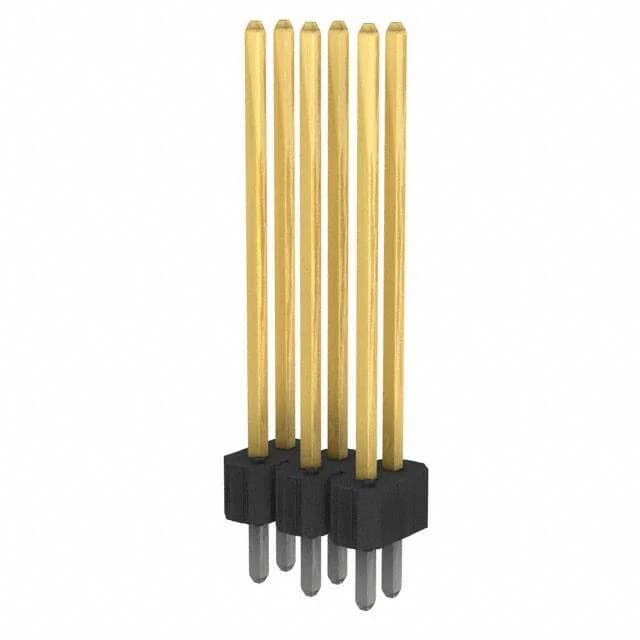

Amphenol FCI BERGSTIK II dual-row board-to-board header, 6 positions (2×3), 0.100" (2.54 mm) pitch, 5 A per circuit at 110 V, gold-plated phosphor bronze contacts (30.0 µin) on 0.720" mating length, push-pull push-pull through-hole mount, UL94 V-0 black insulation, 0.100" row spacing.
$1.3900Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Voltage | 110 V |
| Current | 5 A |
| Mounting | Through Hole |
| Connector size | Header |
| Contact material | Phosphor Bronze |
| Pitch | 0.100" (2.54 mm) |
| Package | Bag |
| Positions | 6 |
| Shrouding | Unshrouded |
| Orientation | Board to Board |
| Termination | Solder |
| Gender (Contact) | Male Pin |
| Contact plating | Gold or Gold, GXT™ |
| Locking (Fastening) | Push-Pull |
| Rows | 2 |
Product details
Frequently asked questions
What is the connector style of the 87900-106HLF?
The listed style is Board to Board, confirming this is a board-stacking header intended for PCB-to-PCB interconnection rather than wire termination.
What current and voltage ratings does the 87900-106HLF carry?
5 A per contact at 110 V, with gold plating at 30.0 µin (0.76 µm) on the mating interface — the plating thickness, not the headline current, is what governs mating cycle life at this duty.
