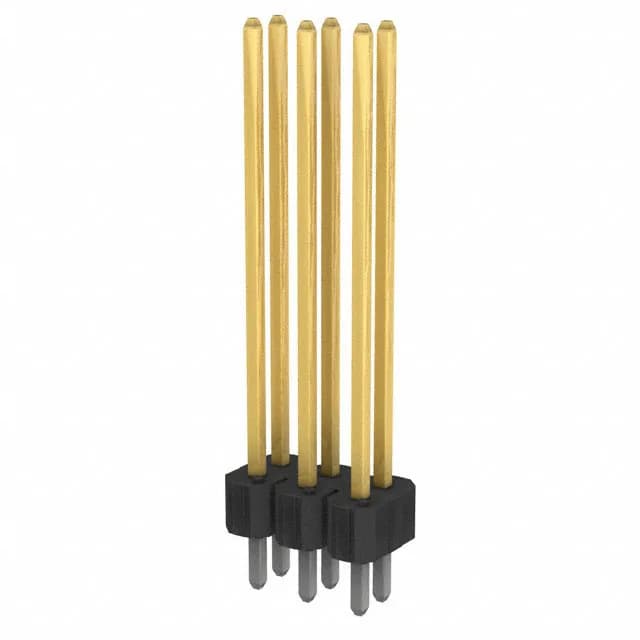

Amphenol FCI BERGSTIK II 87901-106HLF, 6-position, 2-row unshrouded male header, 0.100" (2.54mm) pitch, 5A per circuit at 110V, gold-plated phosphor bronze contacts, through-hole solder, UL94 V-0 black insulator, bulk pack.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Voltage | 110 V |
| Current | 5 A |
| Mounting | Through Hole |
| Connector size | Header |
| Contact material | Phosphor Bronze |
| Pitch | 0.100" (2.54 mm) |
| Package | Bulk |
| Positions | 6 |
| Shrouding | Unshrouded |
| Orientation | Board to Board |
| Termination | Solder |
| Gender (Contact) | Male Pin |
| Contact plating | Gold or Gold, GXT™ |
| Locking (Fastening) | Push-Pull |
| Rows | 2 |
The only compliance attribute explicitly listed in this listing is UL94 V-0 for the insulation material. No specific RoHS, REACH, UL, or IEC certification entries are present in the source record — confirm against the manufacturer datasheet for REACH/RoHS statements if the end equipment requires it.
Board to Board — the BERGSTIK II series is a 0.100" pitch board-to-board header family.
BERGSTIK II, manufactured by Amphenol FCI (now Amphenol ICC).
The listing shows a UL94 V-0 flammability rating on the insulation. Specific RoHS, REACH, UL, or IEC certification entries are not present in the source record — confirm with the manufacturer datasheet if the end application requires formal declarations.
