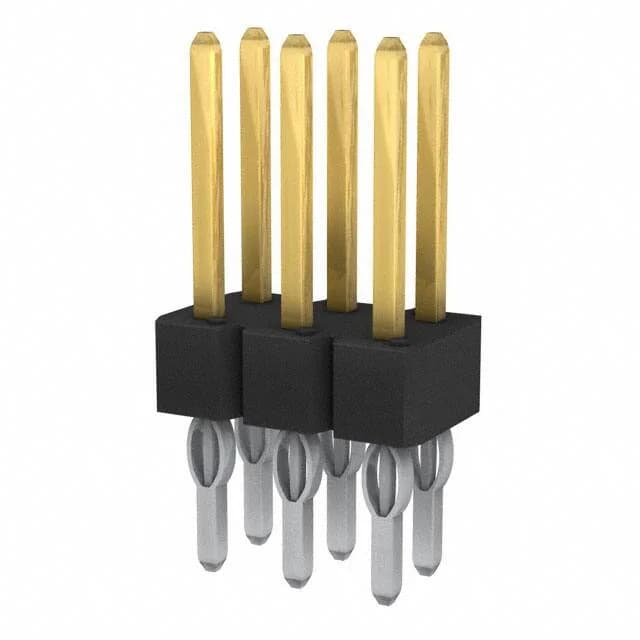

The Amphenol FCI 93690-101-06LF is a 6-position, dual-row BERGSTIK® header rated 5 A per circuit at 110 V, with gold GXT™ plating on the mating face and tin-plated press-fit/solder posts for through-hole board attachment. The connector mates with any standard 0.100-inch (2.54 mm) square-pin receptacle or cable assembly in the BERGSTIK® series, and all six positions are fully loaded.
Plating grade and what it means for your application
The 30.0 µin (0.76 µm) gold GXT™ on the mating side puts this in the mid-grade plating tier — better than flash-gold for repeat mating cycles, but without the full gold-over-nickel stack of a high-cycle contact. For a board-to-board or cable plug that sees occasional field service reconnect, that is sufficient. The tin post plating (39.4 µin / 1.00 µm) protects the solder-side and press-fit zone from oxidation over long storage periods.
Footprint and stack-up
The 0.100-inch row spacing equals the mating pitch, so the pin field is a clean square grid — a standard 0.100-inch raster footprint that routes out with single-track spacing at 2.54 mm pitch.
Material and flammability
The housing is black thermoplastic with a UL94 V-0 flammability rating — the baseline for most industrial and commercial equipment enclosures. Contact material is copper alloy across all pins.
Sourcing and BOM fit
Type and style
The header is listed as Style: Board to Board or Cable — it functions as a breakaway header, so the board side can be pressed or soldered into the PCB while the mating side accepts a plug-in cable assembly or a board-mount receptacle on the adjacent layer.
