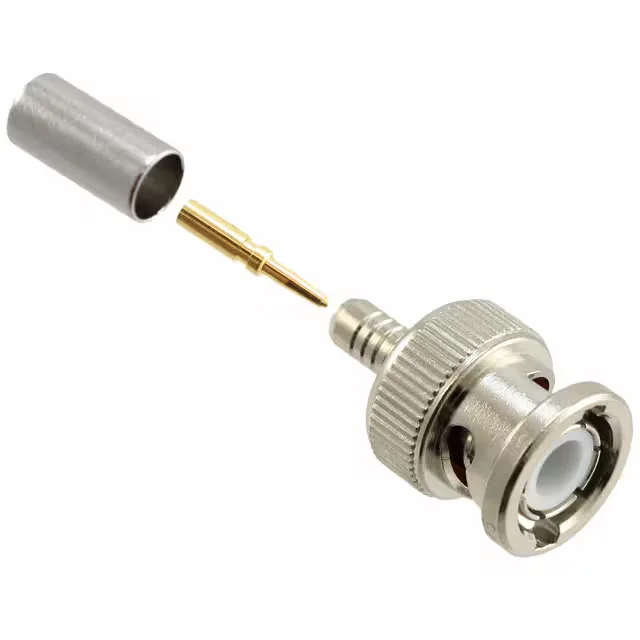

BNC Plug for RG-58 — 4 GHz, 50 Ohm
The 000-36775: The bayonet lock provides a quick quarter-turn mate — standard for test equipment, instrumentation, and low-power RF links where you need a positive connection without a threaded coupling. The dielectric is PTFE. Rated for 500 mating cycles, it holds up in field-service or benchtop use where the connector gets reconnected frequently.
This plug accepts RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, and 9907. The shield is crimped; the center contact can be crimped or soldered — your choice depending on the tooling you have on hand. For a clean install, match the cable prep length to the ferrule and contact dimensions in the manufacturer's assembly instruction. You supply the cable and the crimp tool.
Sourcing and Cross-Reference
It shares the same BNC style, 50 Ohm impedance, 4 GHz bandwidth, 500 V rating, and cable group. The main difference is the dielectric: PTFE in the 000-36775 versus POM Acetal in the 31-320-RFX. For most RF applications below 4 GHz, the dielectric swap is transparent, but if you're working near the frequency ceiling or need the PTFE's lower loss tangent, stick with the 000-36775.
