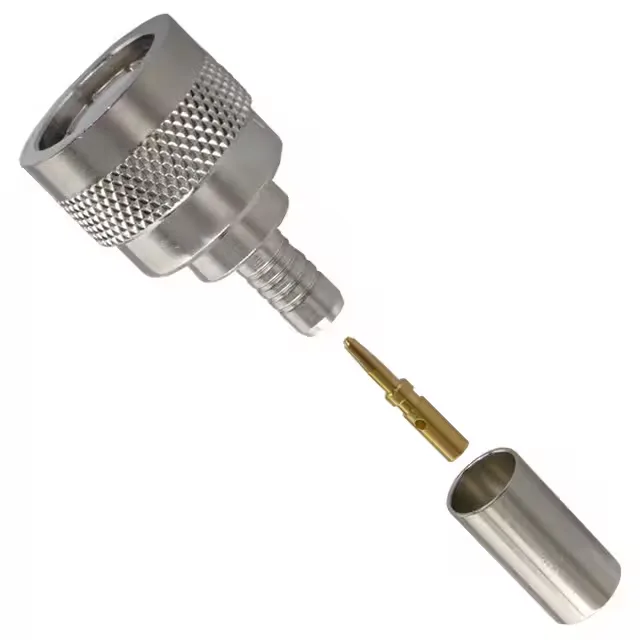

000-36825 — Amphenol product photo
Amphenol

Amphenol 000-36825 TNC Plug, 50 Ohm, 11 GHz, RG-58 Cable

MPN000-36825
Active

Amphenol TNC plug, male pin, 50 Ohm, 11 GHz, crimp termination, includes connector/contact/ferrule, for RG-58 cable, Bulk.

$10.4500Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

000-36825 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeThreaded
Voltage rating500 V
Frequency - max11 GHz
Cable groupRG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance50Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

Cable Assembly Kit for RG-58 Coax

The Amphenol 000-36825 is a TNC plug, male pin connector — a threaded RF interface for applications requiring more vibration resistance than a BNC but without the bayonet coupling. The kit covers the full cable termination in one order code, so you are not sourcing the contact and ferrule separately. The 50 Ohm impedance and 11 GHz maximum frequency place this squarely in the RG-58 cable class — the cable group listed includes RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, and 9907.

Wiring the Connector — Crimp Sequence

Strip the cable per the manufacturer's dimensions — the centre contact crimps onto the exposed centre conductor, the ferrule crimps over the braid and jacket. The 500 mating cycles come from the gold-on-brass centre contact — tin would gall sooner under the threaded coupling.

Frequently asked questions

What cable is compatible with Amphenol 000-36825?

The 000-36825 is rated for RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, and 9907 cable groups. The centre contact and ferrule are sized for the dielectric diameter and braid coverage of these cables.

Is 000-36825 an N-type connector?

No — the 000-36825 is a TNC plug, male pin. TNC uses a threaded coupling nut; N-type is larger with a different thread pitch and dielectric diameter. They do not mate.
