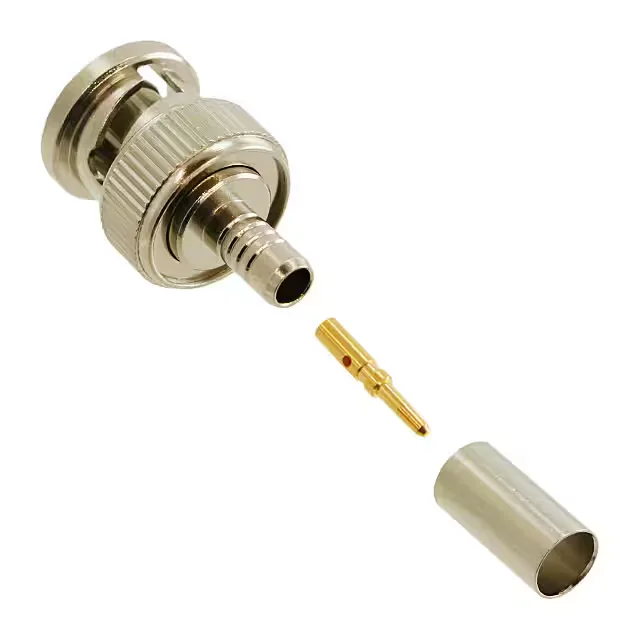

000-36875 — Amphenol product photo
Amphenol

Amphenol RF 000-36875 BNC Plug, 50 Ohm, 1 GHz, NRND

MPN000-36875
NRND

Amphenol RF BNC plug, male pin, 50 Ohm, 1 GHz, 0.2 dB insertion loss, 500 mating cycles, crimp/solder termination, RG-55/142/223/400, silver nickel body, PTFE dielectric, Bulk, NRND.

$8.8769Ref. price · indicative, final on quote
000-36875 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

000-36875 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max1 GHz
Cable groupRG-55, 142, 223, 400
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp or Solder
Center contact platingGold

Product details

What is the Amphenol RF 000-36875?

It ships as a kit: one connector body, one crimp/solder contact, and one ferrule, ready to terminate onto RG-55, 142, 223, or 400 cable.

The 000-36875 carries a NRND (Not Recommended for New Design) status. It is not formally discontinued, but Amphenol RF advises against using it in new product builds. No official replacement part number has been issued by the manufacturer; any cross-reference would need to match the BNC interface, 50 Ohm impedance, and cable group compatibility.

Cable Group and Termination Fit

This plug terminates to RG-55, RG-142, RG-223, and RG-400 cable groups — the common double-shielded and triple-shielded coax types for instrumentation and telecom. The contact accepts either crimp or solder attachment; the shield terminates via a crimp ferrule.

RF Performance at a Glance

Rated to 1 GHz maximum frequency with a 0.2 dB insertion loss — clean enough for most baseband and low-frequency RF links. Voltage rating is 500 V. Mating cycles are rated at 500, which is typical for a BNC bayonet interface in field-service or bench-test use.

Frequently asked questions

Where can I buy the Amphenol RF 000-36875?

The 000-36875 is available to order through our distribution channel. Submit a request with your target quantity and we will source it.

Is the 000-36875 obsolete or NRND?

It carries a NRND (Not Recommended for New Design) status. It is not formally discontinued, but it is not intended for new product development. For existing equipment or repair stock, it can still be sourced.

What cable groups are compatible with the 000-36875?

The 000-36875 is designed for RG-55, RG-142, RG-223, and RG-400 cable groups. These are common double/triple-shielded 50 Ohm coax types.

What is the insertion loss of the 000-36875?

The specified insertion loss is 0.2 dB, measured at the rated frequency range up to 1 GHz.

What is the equivalent or replacement for the 000-36875?

Amphenol RF has not published an official replacement or cross-reference for the 000-36875. Any substitute would need to match the BNC interface, 50 Ohm impedance, and RG-55/142/223/400 cable compatibility. Sourcing the original 000-36875 through an RFQ is the direct path.
