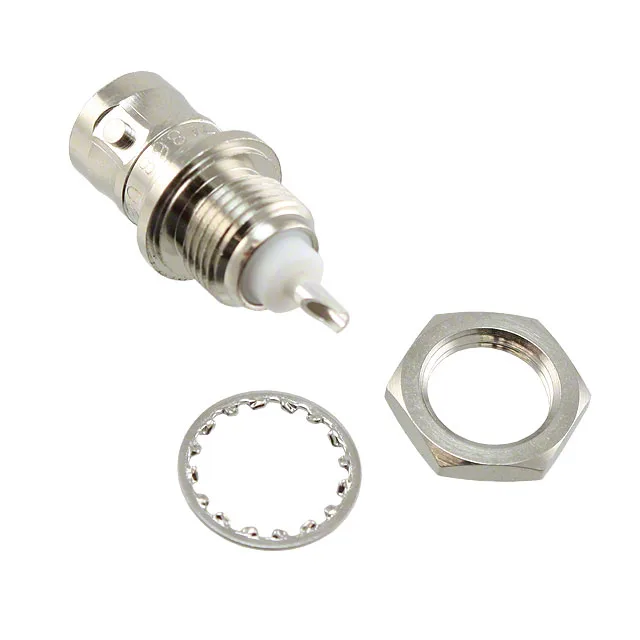

000-5575 — Amphenol product photo
Amphenol

Amphenol RF 000-5575 BNC Panel Mount Jack, 50 Ohm, 2 GHz

MPN000-5575
Active

Amphenol RF BNC jack, 50 Ohm, 2 GHz, panel mount bulkhead, bayonet lock, solder cup, silver center contact, 500 cycles, -65°C to 165°C.

$8.1500Ref. price · indicative, final on quote
StockIn Stock (19)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

000-5575 Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max2 GHz
Mounting featureBulkhead - Rear Side Nut
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Includes3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationSolder
Contact terminationSolder Cup
Center contact platingSilver

Product details

Panel-mount BNC jack, 50 Ohm, 2 GHz ceiling

The 000-5575: The 500 mating cycles and silver-plated beryllium copper center contact suit it for test-equipment panels and RF distribution boxes where the connector sees regular connect/disconnect duty but not production-line cycle counts. The bulkhead mount uses a rear-side nut and includes the lockwasher and nut in the package — no separate hardware order for the panel retention. The PTFE dielectric keeps insertion loss at 0.2 dB across the band, which is clean for a 2 GHz signal path.

The center contact terminates via solder cup — you tin the wire, solder it into the cup, and assemble the body. No crimp tool required for the center pin, which simplifies field repair or one-off builds.
