000-6775-75 Amphenol RF BNC Plug, 75 Ohm, 4 GHz

MPN 000-6775-75
Active

Amphenol RF BNC plug, 75 Ohm, RG-8/213/214 cable group, solder contact, clamp shield, bayonet lock, weatherproof, 500 mating cycles, 4 GHz max, 500 V, -65 to 165 °C.

$5.4800 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

000-6775-75 key specifications
ParameterValue
MountingFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
IP ratingWeatherproof
Cable groupRG-8, 8A, 9, 87A, 213, 214, 225, 393
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass

All specifications

000-6775-75 additional specifications
ParameterValue
PackageBulk
Includes6 pcs - 1 Connector, 1 Braid Clamp, 1 Clamp, 1 Contact, 1 Gasket, 1 Washer
Impedance75Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationClamp
Contact terminationSolder
Center contact platingSilver

Product details

The 000-6775-75: This is the male pin version — mates with any standard 75 Ohm BNC jack or bulkhead receptacle. Silver-plated brass centre contact and body, with a nickel body finish for corrosion resistance.

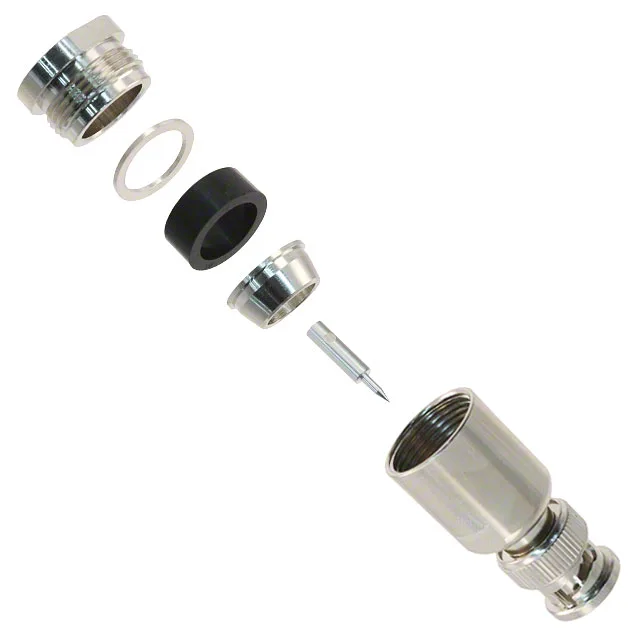

What Comes in the Kit

This is a 6-piece assembly kit: one connector body, one braid clamp, one clamp, one centre contact, one gasket, and one washer. You supply the cable and the solder. The braid clamp and clamp capture the shield braid before the gasket seals the cable entry — the weatherproof rating depends on all pieces being present and properly torqued. No separate boot or O-ring to order.

Cable group covers RG-8, RG-8A, RG-9, RG-87A, RG-213, RG-214, RG-225, and RG-393 — all nominally 0.405-inch diameter coax with a solid or stranded centre conductor. The centre contact is solder-type; the shield terminates via the clamp mechanism. Free-hanging (in-line) mount — no panel cutout needed.

Mating Cycles and Environment

The weatherproof construction (no IP number stated, but the gasket and clamp seal make it suitable for outdoor or washdown areas) means it keeps moisture out of the cable end as long as the gasket is not nicked.

Voltage and Power Handling

Rated 500 V. In a 75 Ohm system, that voltage ceiling is well above the signal levels for composite video (1 V p-p) or most RF test signals. The limiting factor at 4 GHz is insertion loss and return loss, not voltage breakdown — the PTFE dielectric keeps the centre conductor isolated.
