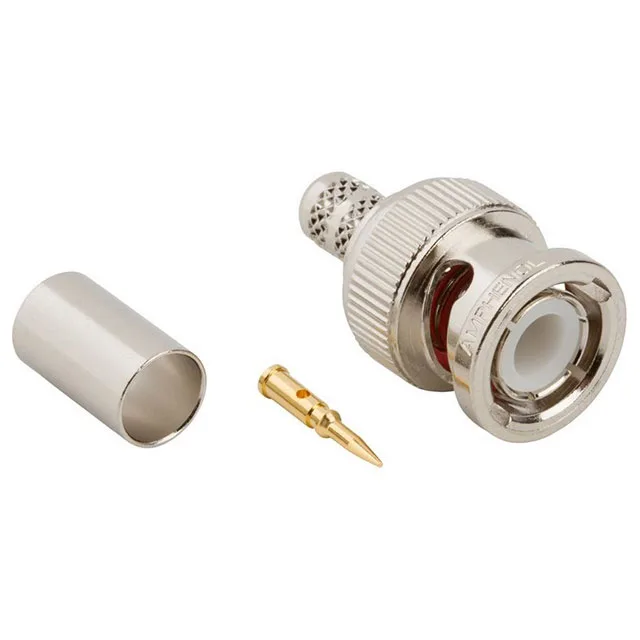

000-68175-1011 — Amphenol product photo
Amphenol

Amphenol RF 000-68175-1011 BNC Plug Kit, 2 GHz, 500 V

MPN000-68175-1011
Active

Amphenol RF BNC plug kit, 000-68175-1011, male pin, 50 Ohm, 2 GHz max, 500 V, crimp shield, crimp or solder contact, RG-59/1506/82108/9104 cable, 500 mating cycles, -65 to 165 °C, Bulk.

$5.4800Ref. price · indicative, final on quote
000-68175-1011 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

000-68175-1011 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max2 GHz
Cable groupRG-59 Plenum, Belden 1506, 82108, 9104
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Includes4 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Insulator
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp or Solder
Center contact platingGold

Product details

The Amphenol RF 000-68175-1011 is a BNC plug kit — a field-terminatable male pin connector for 50 Ohm coaxial cable systems. It ships as a complete assembly kit containing the connector body, a crimp-style contact, a ferrule, and an insulator, so you have everything needed for one termination in a single order code. The BNC bayonet-lock interface is the standard quick-connect/disconnect for test equipment, broadcast video, and instrumentation up to 2 GHz.

Cable Compatibility and Kit Contents

This kit is designed for RG-59 plenum cable and its equivalents: Belden 1506, 82108, and 9104. The 4-piece kit includes the connector body with a nickel-plated brass shell, a gold-plated brass centre pin, a crimp ferrule, and a PTFE dielectric insulator. The centre contact can be terminated by crimp or solder; the shield termination is crimp-only via the supplied ferrule.

RF Performance and Environmental Range

The voltage rating of 500 V is typical for BNC interfaces in instrumentation.

Frequently asked questions

What cable is the 000-68175-1011 compatible with?

The 000-68175-1011 is designed for RG-59 Plenum cable and its equivalents Belden 1506, 82108, and 9104.

What is included in the 000-68175-1011 kit?

The kit includes 4 pieces: 1 connector body, 1 centre contact, 1 ferrule, and 1 insulator — everything needed for one termination.
