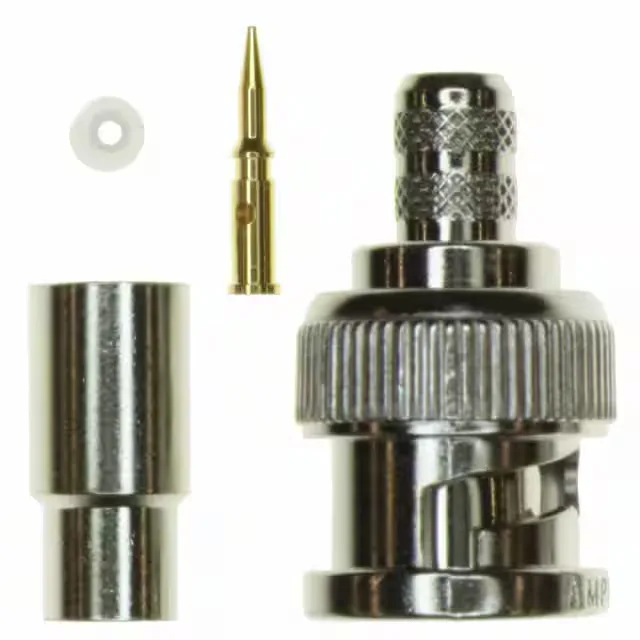

000-68175-11RFX — Amphenol product photo
Amphenol

Amphenol RF 000-68175-11RFX BNC Plug, 50 Ohm, 4 GHz, NRND

MPN000-68175-11RFX
NRND

Amphenol RF BNC plug, male pin, 50 Ohm, 4 GHz, 500 V, crimp termination, RG-59 plenum, 500 mating cycles, -40°C to 85°C, NRND.

$5.6100Ref. price · indicative, final on quote
000-68175-11RFX datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

000-68175-11RFX Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Cable groupRG-59 Plenum, Belden 1506, 82108, 9104
Operating temperature-40°C~85°C
Body materialBrass
Housing colorSilver
Dielectric materialPolyoxymethylene (POM) Acetal
Center contact materialBrass
PackageBulk
Includes4 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Insulator
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

The 000-68175-11RFX: It ships as a kit: the connector body, one contact, one ferrule, and one insulator — everything needed for one termination.

NRND — Sourcing Reality for This Part

That means Amphenol RF is no longer supporting it for new projects, though existing stock in the distribution channel may still be available.

Cable Fit and Termination on RG-59

The 000-68175-11RFX is designed for RG-59 plenum cable (Belden 1506, 82108, 9104).

The 4 GHz frequency ceiling with 0.2 dB insertion loss puts this plug above a standard 1 GHz BNC — it will pass a clean signal through the low-GHz range used by some baseband video and instrumentation links.

Frequently asked questions

What is the replacement or equivalent for Amphenol RF 000-68175-11RFX?

For a new design, evaluate current-generation 50-ohm BNC plugs from Amphenol RF with the same cable group compatibility.

Which cables are compatible with 000-68175-11RFX?

This plug is designed for RG-59 plenum cable and Belden equivalents 1506, 82108, and 9104. The kit includes the ferrule and insulator for crimp termination on those cable types.

Where can I buy 000-68175-11RFX available via RFQ confirmation?

This NRND part is sourced to order against your RFQ.
