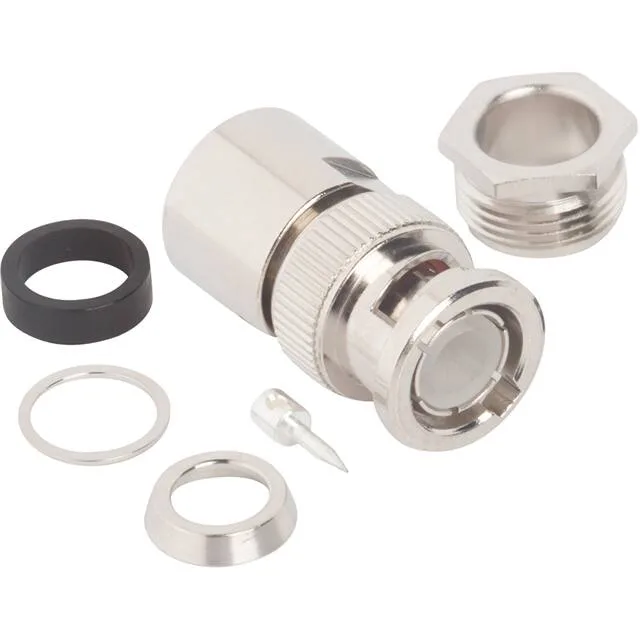

000-9350 — Amphenol product photo
Amphenol

000-9350 Amphenol RF BNC Plug, 50 Ohm, 4 GHz, Weatherproof

MPN000-9350
Active

Amphenol RF BNC plug, male pin, 50 Ohm, 4 GHz, 500 V, weatherproof, solder termination, bayonet lock, includes 6-piece kit.

$5.4800Ref. price · indicative, final on quote
000-9350 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

000-9350 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Ingress protectionWeatherproof
Cable groupRG-6, 6A, 54, 143, 212, Belden 1152A, 89248, 9290
Operating temperature-30°C~70°C
Body materialBrass
Housing colorSilver
Dielectric materialPolystyrene (PS)
Center contact materialBrass
PackageBulk
Includes6 pcs - 1 Connector, 1 Braid Clamp, 1 Clamp, 1 Contact, 1 Gasket, 1 Washer
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationClamp
Contact terminationSolder
Center contact platingSilver

Product details

RF Interconnect Field Note: 50 Ohm BNC Plug for RG-6 and Similar Cables

The 000-9350: The weatherproof rating means the mated pair can be used in outdoor enclosures or exposed cable runs where moisture ingress would otherwise degrade the signal path.

Cable and Hardware Compatibility

This plug is listed for RG-6, RG-54, RG-143, RG-212, Belden 1152A, 89248, and 9290 cables — the clamp-style shield termination and solder center contact suit these common 50 Ohm coax types.

Mechanical and Environmental Ratings

The bayonet lock provides a quick, positive mate with a quarter-turn — no torque wrench needed.

Frequently asked questions

What is the impedance of 000-9350?

The 000-9350 is a 50 Ohm BNC plug, matching standard RF test and telecom impedance.

What cables are compatible with 000-9350?

Compatible cables include RG-6, RG-6A, RG-54, RG-143, RG-212, Belden 1152A, 89248, and 9290.

Does 000-9350 come with hardware?

Yes, the kit includes 6 pieces: the connector body, braid clamp, clamp, contact, gasket, and washer.

What is the insertion loss of 000-9350?

The typical insertion loss is 0.2 dB across the rated frequency range.
