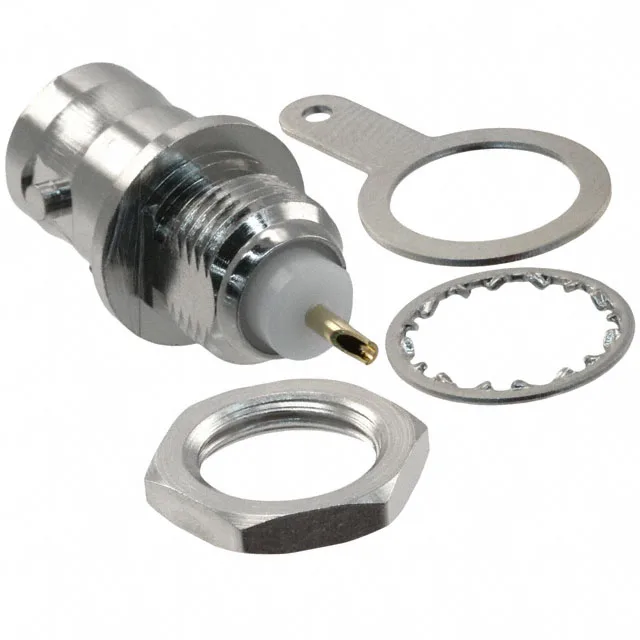

031-221-75RFX — Amphenol product photo
Amphenol

Amphenol RF 031-221-75RFX BNC Jack, 75 Ohm, 4 GHz

MPN031-221-75RFX
Active

Amphenol RF BNC jack, 75 Ohm, 1 port, panel mount bulkhead, solder cup, 4 GHz, 500 V, gold center contact, nickel body, includes mounting hardware.

$3.9900Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

031-221-75RFX Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Mounting featureBulkhead - Rear Side Nut
Body materialBrass
Housing colorSilver
Dielectric materialPolyoxymethylene (POM) Acetal
Center contact materialPhosphor Bronze
PackageBulk
Includes4 pcs - 1 Connector, 1 Locking Ring, 1 Lockwasher, 1 Nut
Impedance75Ohm
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationSolder
Contact terminationSolder Cup
Center contact platingGold

Product details

75 Ohm BNC Jack — the video/telecom signal path connector

The 031-221-75RFX: The bayonet lock gives 500 mating cycles — enough for a patch panel or test rack where the connector gets reconnected regularly. The kit ships with 4 pieces: the connector body, a locking ring, a lockwasher, and a nut — everything needed to mount it through a bulkhead panel. The shield terminates by soldering to the body.

Panel-mount bulkhead — the hardware is in the bag

This is a rear-side-nut bulkhead mount: the connector body slides through the panel hole from the outside, the lockwasher and nut tighten from the inside. The included locking ring secures the bayonet interface. The nickel-plated brass body gives good RF shielding and corrosion resistance for indoor equipment racks and control cabinets. The solder cup termination is field-serviceable — you tin the center conductor, solder it into the cup, and solder the braid to the shield body. No crimp tool needed.

Frequently asked questions

Does 031-221-75RFX include mounting hardware?

Yes, the kit includes 4 pieces: the connector body, a locking ring, a lockwasher, and a nut — everything needed for a rear-side-nut bulkhead panel mount.
