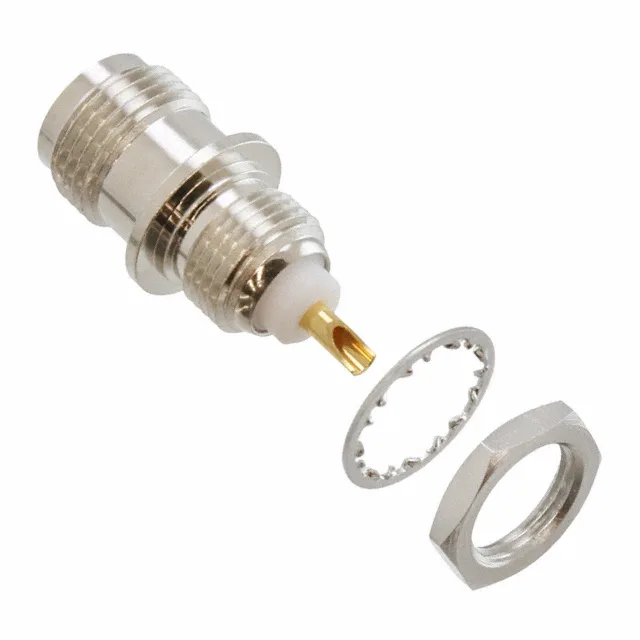

031-2301 — Amphenol product photo
Amphenol

Amphenol RF 031-2301 TNC Receptacle, 50 Ohm, 11 GHz

MPN031-2301
Active

Amphenol RF TNC receptacle, 50 Ohm, 1 port, bulkhead rear-side nut mount, solder cup, gold center contact, 500 mating cycles, -65°C to 165°C, 11 GHz, 0.18 dB insertion loss.

$12.2000Ref. price · indicative, final on quote
031-2301 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

031-2301 Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typeReceptacle, Female Socket
Fastening typeThreaded
Voltage rating500 V
Frequency - max11 GHz
Mounting featureBulkhead - Rear Side Nut
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
FeaturesExtended Insulation
Includes3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.18dB
Number of ports1
Shield terminationSolder
Contact terminationSolder Cup
Center contact platingGold

Product details

TNC Bulkhead Receptacle, 50 Ohm, 11 GHz

The 031-2301: It is a bulkhead-mount part with a rear-side nut, threaded coupling, and a single port.

500 Mating Cycles, Solder Cup Termination

Termination is solder cup for the center contact and solder shield termination, so the installer tins the wire, fills the cup, and solders the shield to the body. The kit includes the connector, lockwasher, and nut for panel installation.

Selection Note: TNC Threaded Interface

The threaded fastening type provides vibration-resistant mating compared to a bayonet BNC, at the cost of slower connect/disconnect. The bulkhead rear-side nut mount requires access behind the panel for installation — plan for that clearance in the enclosure layout.
