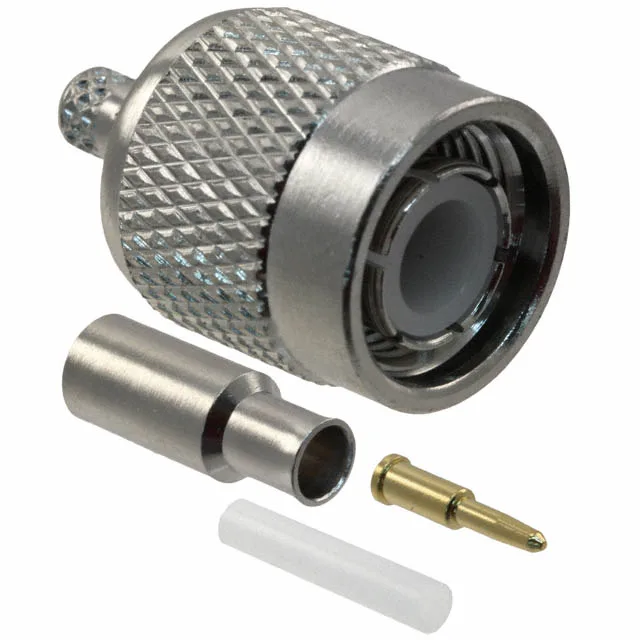

Amphenol RF TNC plug, male pin, 50 Ohm, crimp termination, for RG-174/188/316/LMR-100 cable, 500 mating cycles, 0.18 dB insertion loss, nickel-plated brass body.
| Parameter | Value |
|---|---|
| Mounting type | Free Hanging (In-Line) |
| Connector type | Plug, Male Pin |
| Fastening type | Threaded |
| Voltage rating | 500 V |
| Cable group | RG-174, 188, 188A, 316, LMR-100, M17/119-RG174 |
| Operating temperature | -65°C~165°C |
| Body material | Brass |
| Housing color | Silver |
| Dielectric material | Polyoxymethylene (POM) Acetal |
| Center contact material | Brass |
| Package | Bulk |
| Includes | 4 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Sleeve |
| Impedance | 50Ohm |
| Body finish | Nickel |
| Mating cycles | 500 |
| Insertion loss | 0.18dB |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Crimp |
| Center contact plating | Gold |
This plug accepts RG-174, RG-188A, RG-316, LMR-100, and M17/119-RG174. The kit includes the ferrule and sleeve, so no separate hardware sourcing is needed for a single termination.
The voltage rating of 500 V is typical for TNC interfaces and covers most RF power levels on these small cables.
Yes, the connector is rated at 50 Ohms impedance, matching standard RF system impedance for these cable types.
Rated for 500 mating cycles. The gold-plated center contact supports repeated connect-disconnect without significant degradation.
The insertion loss is 0.18 dB, a low figure that minimizes signal attenuation in the RF path.
The body is nickel-plated brass, the center contact is gold-plated brass, and the dielectric is polyoxymethylene (POM) acetal. The housing color is silver.
