Amphenol 031-2318-RFX

Amphenol RF 031-2318-RFX TNC Jack, 50 Ohm, Bulkhead, Crimp

MPN 031-2318-RFX
Active

Amphenol RF TNC jack, 031-2318-RFX, 50 Ohm, bulkhead front-side nut mount, crimp shield/contact termination, includes gasket lockwasher nut, silver nickel-plated brass body, gold centre contact.

$6.4500 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

031-2318-RFX key specifications
ParameterValue
MountingPanel Mount
Connector typeJack, Female Socket
Fastening typeThreaded
Voltage rating500 V
Mounting featureBulkhead - Front Side Nut
Cable groupRG-174, 188, 188A, 316, LMR-100, M17/119-RG174
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolyoxymethylene (POM) Acetal
Center contact materialPhosphor Bronze
PackageBulk

All specifications

031-2318-RFX additional specifications
ParameterValue
Includes7 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut, 1 Sleeve
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.18dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

Panel-mount TNC jack with crimp termination — a complete assembly kit

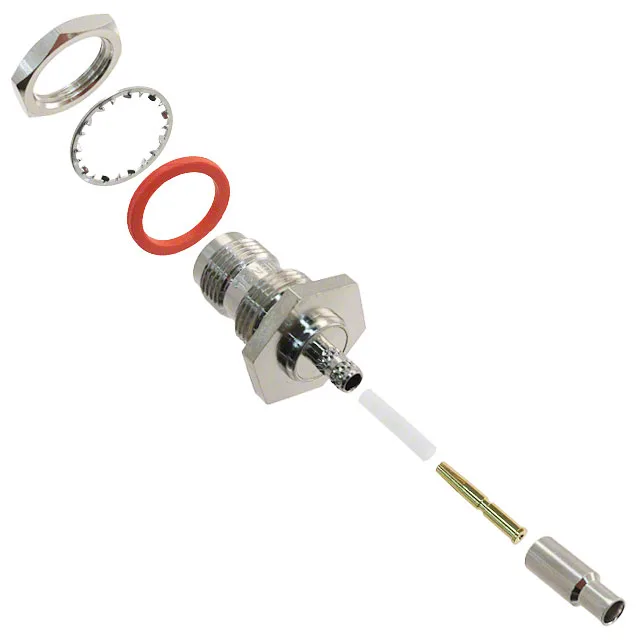

The connector ships as a 7-piece kit: the jack body, one centre contact, one ferrule, one gasket, one lockwasher, one nut, and one sleeve, so you don't need to source mounting hardware separately. The 50 Ohm impedance and TNC threaded interface make this a direct fit for systems where a BNC's bayonet lock is too loose under vibration — the threaded coupling holds the pair mated through the full 500-cycle rating without the intermittent opens a push-on interface can develop.

Cable group — what fits the crimp

The crimp ferrule and centre contact are sized for RG-174, RG-188A, RG-316, LMR-100, and M17/119-RG174.

500 mating cycles is the standard durability for a threaded RF connector — the gold-over-phosphor bronze centre contact resists fretting corrosion through repeated connects. In practice, the threaded coupling wears the plating on the outer thread more than the centre contact; if the nut starts to feel gritty before 500 cycles, the connector is still electrically sound but the interface torque should be checked against the manufacturer's spec.
