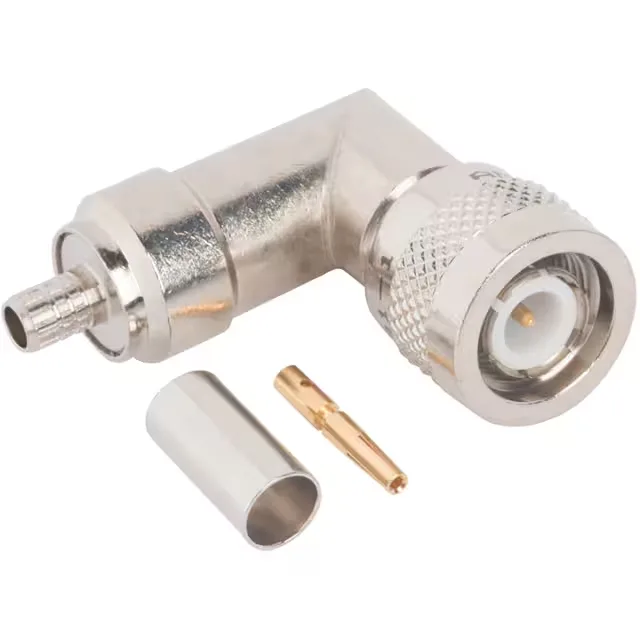

031-2381-1 — Amphenol product photo
Amphenol

Amphenol RF 031-2381-1 TNC Plug, 50 Ohm, 11 GHz, Right Angle

MPN031-2381-1
Active

Amphenol RF TNC plug, male pin, 50 Ohm, 11 GHz, right-angle crimp, RG-55/142/223/400, 500 mating cycles, -65°C~165°C, gold-plated centre contact, nickel body.

$8.7600Ref. price · indicative, final on quote
031-2381-1 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

031-2381-1 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line), Right Angle
Connector typePlug, Male Pin
Fastening typeThreaded
Voltage rating500 V
Frequency - max11 GHz
Cable groupRG-55, 142, 223, 400
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialPhosphor Bronze; Zinc Die Cast
PackageBulk
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.18dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

TNC Plug, Right-Angle Crimp, 11 GHz

The 031-2381-1: It carries the threaded coupling that distinguishes TNC from BNC — the thread prevents vibration from backing the nut off, so the connection stays tight in an enclosure or on a panel where the cable gets bumped.

If you are building a harness for a 50 Ohm system on any of those cable types, this is the plug that matches the line.

Durability and Field Life

Rated for 500 mating cycles — that is the threaded coupling wearing the plating, not the contact beam fatiguing. The nickel body finish resists corrosion in a humid cabinet or outdoor enclosure. Single-port design, so one cable per connector — no daisy-chaining through the body.

Frequently asked questions

What cable groups are compatible with 031-2381-1?

The 031-2381-1 terminates to RG-55, RG-142, RG-223, and RG-400 cable groups via crimp termination.

What is the impedance of the 031-2381-1?

The 031-2381-1 is a 50 Ohm connector, rated for use up to 11 GHz.
