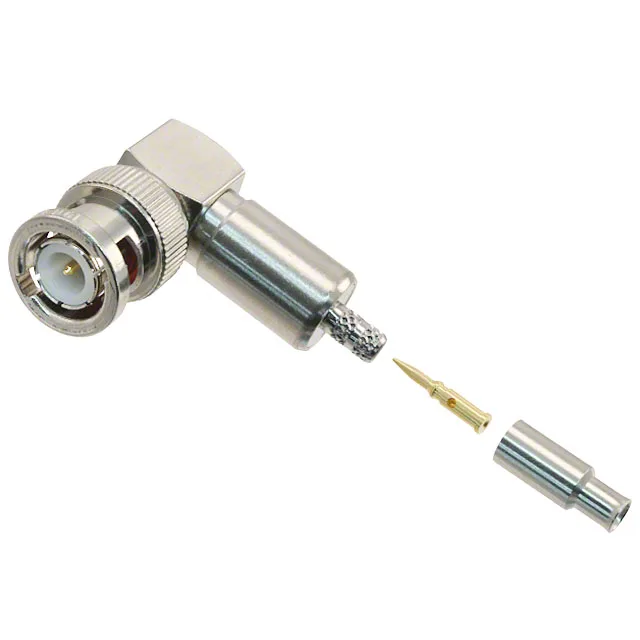

031-316-RFX — Amphenol product photo
Amphenol

Amphenol RF 031-316-RFX BNC Plug, Male Pin, 4 GHz, 50 Ohm

MPN031-316-RFX
Active

Amphenol RF BNC plug, male pin, 50 Ohm, 4 GHz max, 0.2 dB insertion loss, 500 mating cycles, crimp termination, bayonet lock, free hanging right-angle, bulk.

$11.5500Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

031-316-RFX Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line), Right Angle
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Cable groupRG-174, 188, 188A, 316, LMR-100, M17/119-RG174
Operating temperature-40°C~85°C
Body materialBrass
Housing colorSilver
Dielectric materialPolyoxymethylene (POM) Acetal
Center contact materialBrass; Phosphor Bronze
PackageBulk
Includes4 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Insulator
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

The 031-316-RFX: The bayonet lock provides quick mate/unmate with a positive mechanical retention, while the right-angle, free-hanging body allows routing in tight enclosures where a straight plug would not fit.

This plug terminates cables in the group RG-174, 188, 188A, 316, LMR-100, and M17/119-RG174 — all small-diameter, 50 Ohm coax types commonly used in patch cords and jumpers. Shield termination is crimp, and the centre contact also crimps, which is the standard field-install method for these cable types. The dielectric is polyoxymethylene (POM) acetal, a rigid, low-loss material that maintains consistent impedance through the interface.

Frequently asked questions

What is the Amphenol RF 031-316-RFX connector used for?

Typical applications include test equipment, telecom patch panels, and instrumentation where a quick-connect bayonet lock is needed.

Is the 031-316-RFX a male or female BNC connector?

It mates with a BNC jack (female) receptacle.
