Amphenol 031-317-RFX

031-317-RFX BNC Jack, 50 Ohm, 4 GHz, Crimp Termination

MPN 031-317-RFX
NRND

Amphenol RF 031-317-RFX, BNC jack, female socket, 50 Ohm, 4 GHz, 0.2 dB insertion loss, crimp termination, bayonet lock, 500 V, -55°C to 85°C, bulk.

$4.4036 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

031-317-RFX key specifications
ParameterValue
MountingFree Hanging (In-Line)
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Cable groupRG-174, 188, 188A, 316, LMR-100, M17/119-RG174
Operating temperature-55°C~85°C
Body materialBrass
Housing colorSilver
Dielectric materialPolyoxymethylene (POM) Acetal
Center contact materialPhosphor Bronze
PackageBulk

All specifications

031-317-RFX additional specifications
ParameterValue

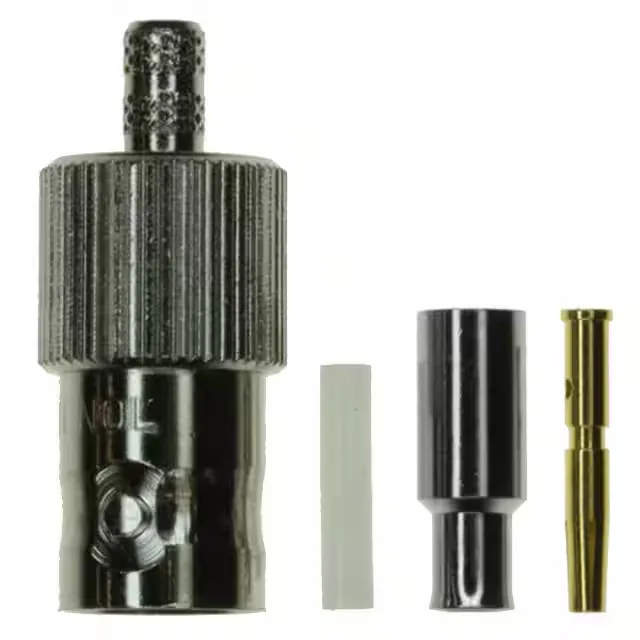

Includes4 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Insulator
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

The 031-317-RFX: This is the crimp-termination variant of the 031-31 base series, intended for RG-174, RG-188, RG-188A, RG-316, LMR-100, and M17/119-RG174 cables.

That means the manufacturer continues to support existing production but advises against specifying it for new projects. Buyers planning a new design should evaluate the current 50 Ohm BNC jack portfolio from Amphenol RF for a direct-fit alternative.

The 0.2 dB insertion loss is a typical figure — expect it to hold across the DC-4 GHz range when terminated on the listed cable types. The listed cable groups — RG-174, RG-188, RG-188A, RG-316, LMR-100, M17/119-RG174 — cover the most common 50 Ohm small-diameter coax types used in patch cords, pigtails, and internal RF harnesses. The bayonet lock provides a quick, positive mate with a standard BNC jack, rated for 500 mating cycles.

Construction and Environmental Ratings

The dielectric is polyoxymethylene (POM) acetal. The voltage rating of 500 V is typical for a BNC interface — adequate for signal-level and low-power RF circuits, not for mains power.
