The 031-326: This plug is specced for RG-55, RG-142, RG-223, and RG-400 cables — all 50 Ohm coax with a similar dielectric diameter and braid coverage. The contact termination accepts either crimp or solder, while the shield termination is crimp-only via the included ferrule. If your reel holds RG-58 or RG-174, the dielectric and jacket dimensions won't match the ferrule ID, so stick with the listed cable groups for a proper crimp.
031-326 BNC Plug, Male Pin, 50 Ohm, 4 GHz, Active
MPN031-326
Active

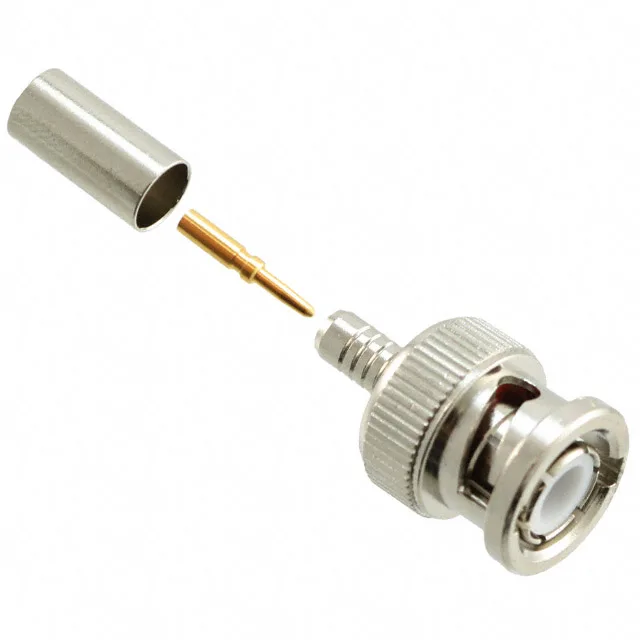

Amphenol 031-326 BNC plug, male pin, 50 Ohm, 4 GHz, bayonet lock, crimp or solder contact termination, free-hanging, includes connector/contact/ferrule.
$11.2000Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pin |
| Fastening type | Bayonet Lock |
| Voltage rating | 500 V |
| Frequency - max | 4 GHz |
| Cable group | RG-55, 142, 223, 400 |
| Operating temperature | -65°C~165°C |
| Body material | Brass |
| Housing color | Silver |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Brass |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule |
| Impedance | 50Ohm |
| Body finish | Nickel |
| Mating cycles | 500 |
| Insertion loss | 0.2dB |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Crimp or Solder |
| Center contact plating | Gold |
Product details
Frequently asked questions
Where can I buy 031-326 and how do I get a price?
Submit a request for your target quantity and we'll confirm availability and current pricing at quote time.
What cable groups work with 031-326?
The 031-326 is designed for RG-55, RG-142, RG-223, and RG-400 cables. These are all 50 Ohm coax types with a compatible dielectric diameter and braid coverage for the ferrule and centre contact.
