Amphenol RF BNC jack, female socket, 50 Ohm, 1 GHz, 500 V, solder contact, crimp shield, free-hanging, RG-59/62/140 cable group, 500 mating cycles, bulk.
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Jack, Female Socket |
| Fastening type | Bayonet Lock |
| Voltage rating | 500 V |
| Frequency - max | 1 GHz |
| Cable group | RG-59, 59B, 62, 140, 210, Belden 8241, 8263, 8279, 9209 |
| Operating temperature | -65°C~165°C |
| Body material | Brass |
| Housing color | Silver |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Phosphor Bronze |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule |
| Impedance | 50Ohm |
| Body finish | Nickel |
| Mating cycles | 500 |
| Insertion loss | 0.2dB |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Solder |
| Center contact plating | Gold |

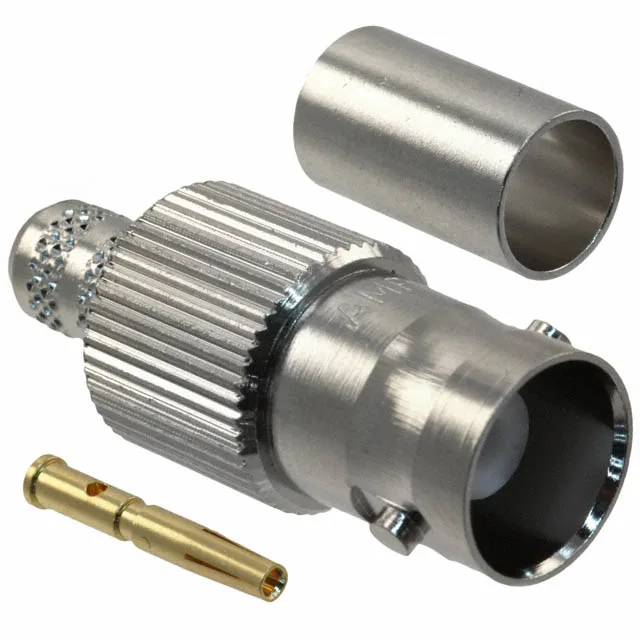

The 031-328-RFX: This is a 3-piece kit: the connector body, a center contact, and a ferrule.
This BNC jack is built for RG-59, RG-62, RG-140, Belden 8241, 8263, 8279, and 9209 cables. The center contact is solder-terminated; the shield is crimped. The bayonet lock provides a quick, secure mate. With 500 mating cycles rated, it holds up well in test-equipment or field-service applications where the connector is regularly disconnected and reconnected.
It is compatible with RG-59, RG-59B, RG-62, RG-140, Belden 8241, 8263, 8279, and 9209 cables.
