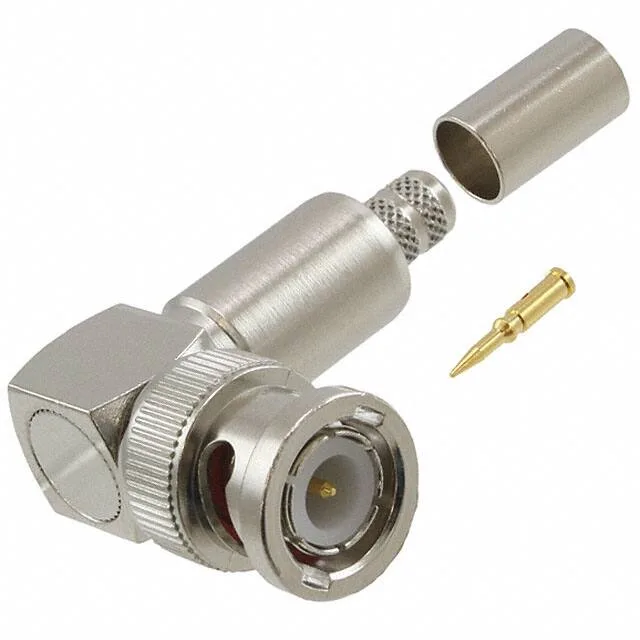

Amphenol RF 031-336-RFX, BNC plug, male pin, right-angle, 50 Ohm, 4 GHz, crimp termination, nickel body, gold centre contact, includes ferrule and contact.
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line), Right Angle |
| Connector type | Plug, Male Pin |
| Fastening type | Bayonet Lock |
| Voltage rating | 500 V |
| Frequency - max | 4 GHz |
| Cable group | RG-59, Belden 1426A, 1501A, 8281, 9100 |
| Operating temperature | -65°C~165°C |
| Body material | Brass |
| Housing color | Silver |
| Dielectric material | Polyoxymethylene (POM) Acetal |
| Center contact material | Brass |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule |
| Impedance | 50Ohm |
| Body finish | Nickel |
| Mating cycles | 500 |
| Insertion loss | 0.2dB |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Crimp |
| Center contact plating | Gold |
The 031-336-RFX: The bayonet lock provides quick mate and disconnect, and the nickel-plated brass body with gold-plated brass centre contact handles 500 mating cycles.
This plug is designed for RG-59, Belden 1426A, 1501A, 8281, and 9100 cables.
This plug is designed for RG-59, Belden 1426A, 1501A, 8281, and 9100 cables.
Yes, the kit includes three pieces: the connector body, one centre contact, and one ferrule — enough for one complete cable termination.
