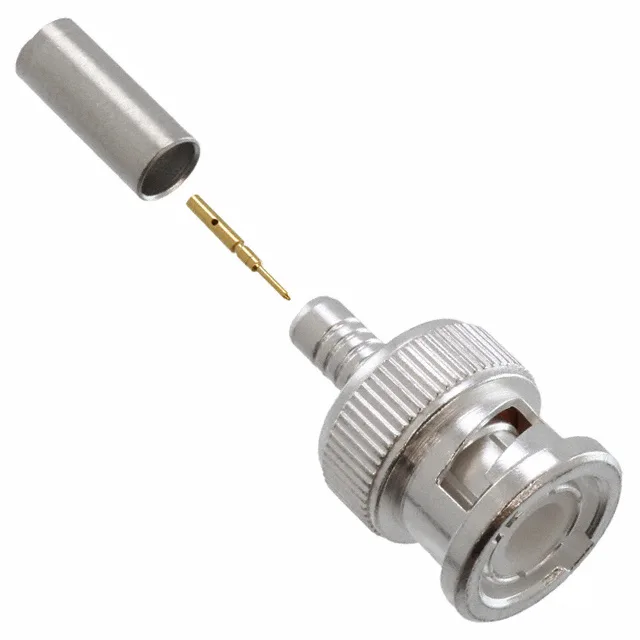

Amphenol RF BNC plug, male pin, 50 Ohm, 4 GHz, crimp termination, includes connector + contact + ferrule, for RG-58 cable family.
| Parameter | Value |
|---|---|
| Mounting type | Free Hanging (In-Line) |
| Connector type | Plug, Male Pin |
| Fastening type | Bayonet Lock |
| Voltage rating | 500 V |
| Frequency - max | 4 GHz |
| Cable group | RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907 |
| Operating temperature | -65°C~165°C |
| Body material | Brass |
| Housing color | Silver |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Brass |
| Package | Bulk |
| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule |
| Impedance | 50Ohm |
| Body finish | Silver |
| Mating cycles | 500 |
| Insertion loss | 0.2dB |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Crimp |
| Center contact plating | Gold |
The 031-4320: The 500-cycle mating life, with gold plating on the centre contact, supports field reconnection over the service life of the equipment.
This plug is designed for the RG-58 cable group and its electrical equivalents: 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, and 9907.
RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, and 9907 — the plug is designed for the RG-58 cable group and its electrical equivalents.
