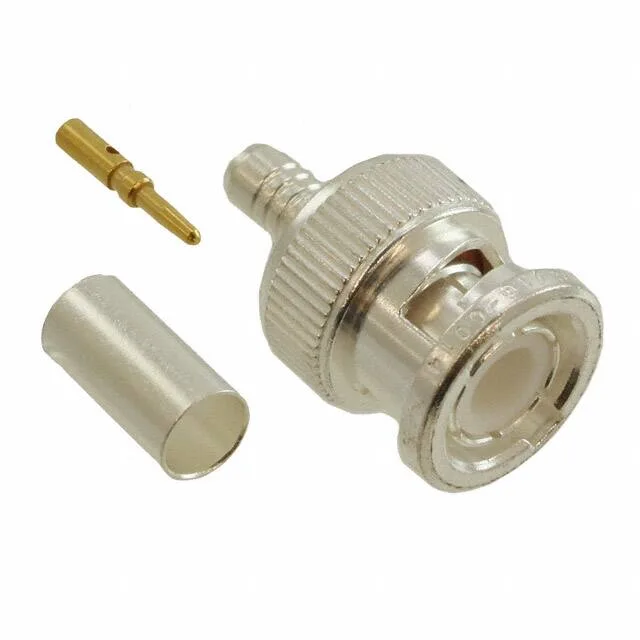

031-4326 — Amphenol product photo
Amphenol

Amphenol RF 031-4326 BNC Plug, 50 Ohm, 4 GHz, Crimp

MPN031-4326
Active

Amphenol RF BNC plug, male pin, 50 Ohm, 4 GHz, crimp termination, silver body, gold center contact, bulk pack includes connector + contact + ferrule.

$7.5674Ref. price · indicative, final on quote
031-4326 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

031-4326 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Cable groupRG-55, 142, 223, 400
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance50Ohm
Body finishSilver
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

50 Ohm BNC Plug for RG-55/142/223/400 — 4 GHz Rated

The 031-4326: It is a field-installable, crimp-terminated connector that mates with standard BNC jacks. The gold-plated center contact and PTFE dielectric maintain consistent impedance up to 4 GHz, with insertion loss specified at 0.2 dB. The bayonet lock provides quick connect/disconnect with positive retention.

This connector is crimped onto the center contact and shield, and accepts cable groups RG-55, 142, 223, and 400. Shield termination is crimp, which gives a reliable 360° ground connection. The brass body with silver finish offers good conductivity and corrosion resistance.

Frequently asked questions

Where can I buy the Amphenol RF 031-4326 BNC connector?

The 031-4326 is available to order. Submit an RFQ for current pricing and lead time — availability is confirmed at quote time through independent distribution.

What is the impedance of the Amphenol RF 031-4326?

The 031-4326 is a 50 Ohm BNC plug, rated for use up to 4 GHz.

What cable does the 031-4326 fit?

It fits cable groups RG-55, 142, 223, and 400.
