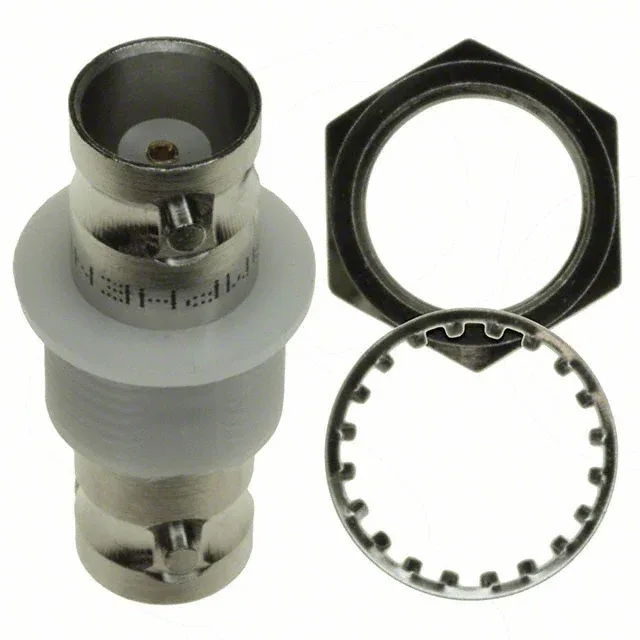

031-4803-RFX — Amphenol product photo
Amphenol

Amphenol RF 031-4803-RFX BNC Jack-to-Jack Adapter, 50 Ohm

MPN031-4803-RFX
Active

Amphenol RF BNC to BNC adapter, 031-4803-RFX, straight jack-to-jack, 50 Ohm, 4 GHz, bulkhead mount, nickel-plated brass body, gold-plated phosphor bronze centre contacts, 500 mating cycles, includes lockwasher and nut.

$9.2700Ref. price · indicative, final on quote
031-4803-RFX datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

031-4803-RFX Technical Specifications
ParameterValue
Adapter typeJack to Jack
Mounting typePanel Mount
Adapter seriesBNC to BNC
Fastening typeBayonet Lock, Bayonet Lock
Conversion typeSame Series
Frequency - max4 GHz
Mounting featureBulkhead
Operating temperature-55°C~85°C
Body materialBrass
Dielectric materialPolyoxymethylene (POM) Acetal
Center contact materialPhosphor Bronze
StyleStraight
PackageBulk
FeaturesIsolated
Includes3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Impedance50Ohm
Body finishNickel
Center genderFemale to Female
Mating cycles500
Center contact platingGold
Convert to (Adapter end)BNC Jack, Female Socket
Convert from (Adapter end)BNC Jack, Female Socket

Product details

50 Ohm BNC Bulkhead Pass-Through, 4 GHz

The Amphenol RF 031-4803-RFX is a straight BNC jack-to-jack adapter, 50 Ohm impedance, designed to pass an RF signal through a panel or bulkhead without a change in connector series or characteristic impedance. The nickel-plated brass body and gold-plated phosphor bronze centre contacts give this adapter the corrosion resistance and mating-cycle life needed for test-equipment panels, instrumentation enclosures, and RF distribution boxes where the cable run passes through a wall. Rated to 4 GHz, it covers the full BNC band for most lab and communications applications.

Mounting Hardware Included

No separate hardware order needed for the panel install — the lockwasher provides vibration resistance against the bulkhead face, and the nut secures the adapter from the rear. The bulkhead mounting feature accepts panel thicknesses typical of sheet-metal enclosures and RF chassis.

500 Mating Cycles with Gold-Plated Contacts

The bayonet lock on both ends gives a positive axial mate without thread wear.

Frequently asked questions

Does 031-4803-RFX include mounting hardware?

No separate hardware purchase is needed for a bulkhead install.

What is the mating cycle rating for 031-4803-RFX?

Rated for 500 mating cycles. The gold-plated centre contacts and bayonet lock support repeated connect-disconnect use on test panels and patch bays.

Where can I buy 031-4803-RFX and what is the lead time?

This part is active and quoted to order against your BOM quantity.
