031-5557-RFX — Amphenol product photo
Amphenol

Amphenol RF 031-5557-RFX BNC Plug, 50 Ohm, 4 GHz, Crimp

MPN031-5557-RFX
Active

Amphenol RF BNC plug, male pin, 50 Ohm, 4 GHz, 500 V, crimp shield, bayonet lock, free-hanging, -65 to 165 °C, 500 mating cycles, gold centre contact.

$5.2772Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

031-5557-RFX Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Cable groupRG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolyoxymethylene (POM) Acetal
Center contact materialBrass
PackageBulk
Includes2 pcs - 1 Connector, 1 Ferrule
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationCrimp
Contact terminationPush On
Center contact platingGold

Product details

50-Ohm BNC Plug for RG-58 and LMR-195 Coax

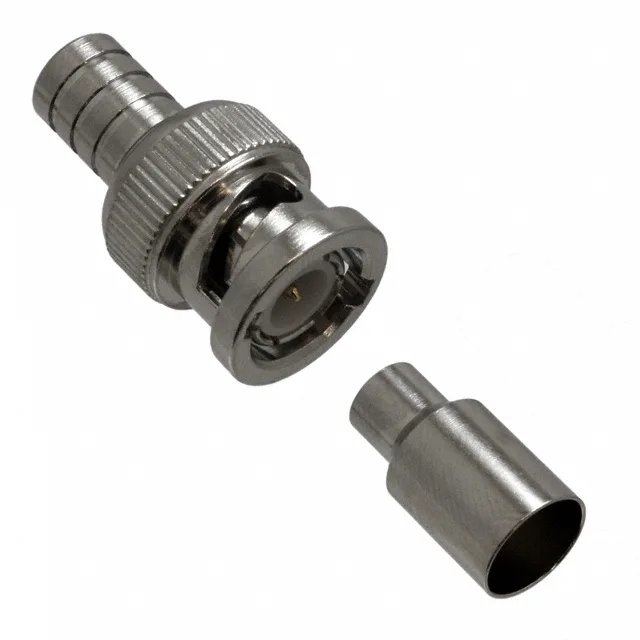

The 031-5557-RFX: It ships as two pieces — the connector body and a separate ferrule — so you crimp the centre contact, then crimp the ferrule over the braid for the shield termination.

4 GHz Ceiling and 500 V Rating

Rated to 4 GHz maximum frequency, this plug covers the full VHF/UHF band and most video and RF test applications up through the lower microwave range. Insertion loss is specified at 0.2 dB, which is low enough that a single connector pair adds negligible signal attenuation in a short cable run.

This plug accepts RG-58, RG-58B, RG-58C, RG-141, RG-303, LMR-195, Belden B7806A, and Belden 9907. All are 50-Ohm cables, so the ferrule and centre-contact crimp dimensions are sized for that common jacket and dielectric OD.

Wide Temperature Range and Materials

The dielectric is polyoxymethylene (POM) acetal, which holds its dielectric properties across the full temperature span.
