BNC plug, male pin, 50 Ohm, 4 GHz, crimp termination, bayonet lock, free hanging, 1 port, 500 mating cycles, gold center contact, nickel body, -65°C~165°C
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pin |
| Fastening type | Bayonet Lock |
| Voltage rating | 500 V |
| Frequency - max | 4 GHz |
| Cable group | RG-6, 6A, 54, 143, 212, Belden 1152A, 89248, 9290 |
| Operating temperature | -65°C~165°C |
| Body material | Brass |
| Housing color | Silver |
| Dielectric material | Polyoxymethylene (POM) Acetal |
| Center contact material | Brass |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule |
| Impedance | 50Ohm |
| Body finish | Nickel |
| Mating cycles | 500 |
| Insertion loss | 0.2dB |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Crimp |
| Center contact plating | Gold |

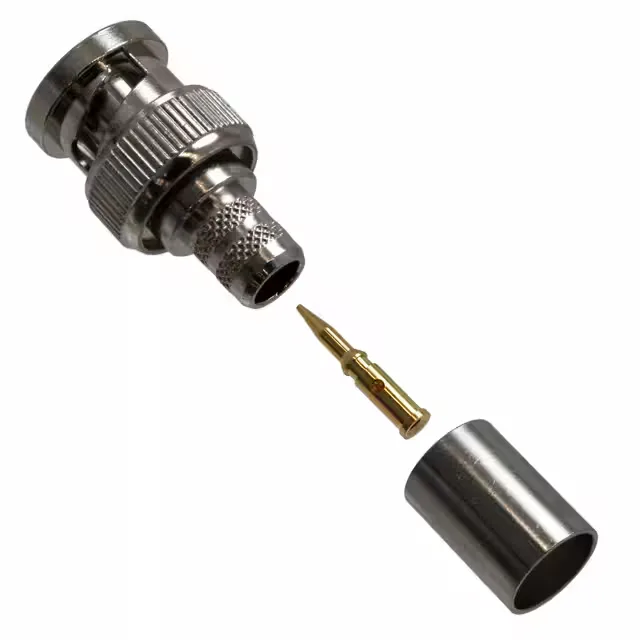

The 031-5558-RFX terminates to RG-6, RG-54, RG-143, RG-212, Belden 1152A, 89248, and 9290 with a crimp-on shield and center contact — one order covers the connector body, contact, and ferrule as a 3-piece kit.
This plug fits RG-6, 6A, 54, 143, 212, Belden 1152A, 89248, and 9290 cables. Verify your cable jacket OD and dielectric diameter against the ferrule bore before ordering.
It fits RG-6, RG-6A, RG-54, RG-143, RG-212, Belden 1152A, 89248, and 9290 coaxial cables. The ferrule and center contact are sized for those specific cable dielectrics and jacket ODs.
The characteristic impedance is 50 Ohm, standard for BNC RF interconnects. The crimp termination and POM dielectric maintain that impedance through the connector body.
