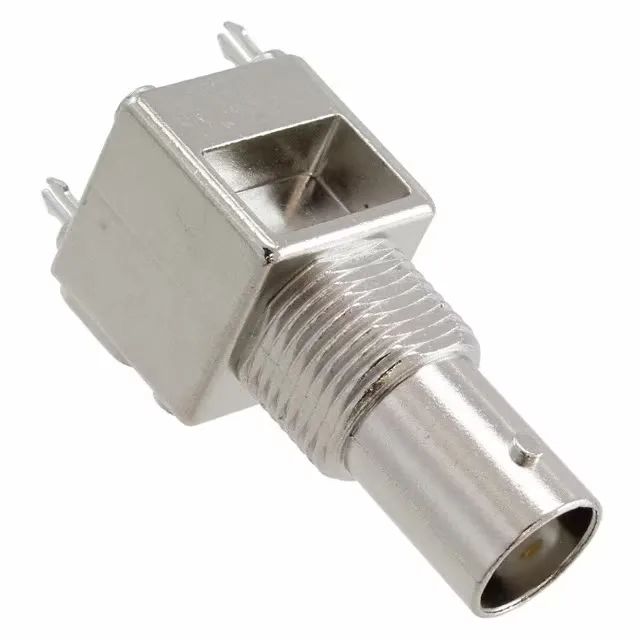

Amphenol RF BNC jack, 031-5633-1010, 50 Ohm, 1 GHz, 500 V, panel mount with board lock, bayonet lock, solder termination, 1 port.
| Parameter | Value |
|---|---|
| Mounting | Panel Mount, Through Hole |
| Connector type | Jack, Female Socket |
| Fastening type | Bayonet Lock |
| Voltage rating | 500 V |
| Frequency - max | 1 GHz |
| Mounting feature | Bulkhead - Front Side Nut |
| Operating temperature | -55°C~85°C |
| Body material | Zinc Die Cast |
| Housing color | Silver |
| Dielectric material | Polypropylene (PP) |
| Center contact material | Phosphor Bronze |
| Package | Tray |
| Parameter | Value |
|---|---|
| Features | Board Lock |
| Impedance | 50Ohm |
| Body finish | Nickel |
| Mating cycles | 500 |
| Insertion loss | 0.2dB |
| Number of ports | 1 |
| Shield termination | Solder |
| Contact termination | Solder |
| Center contact plating | Gold |
The 031-5633-1010: It terminates to the board via solder contacts and mounts through a panel bulkhead with a front-side nut, making it a standard choice for test equipment, instrumentation, and RF front-end interfaces where a quick-disconnect bayonet lock is needed.
The 500 V voltage rating supports moderate-power RF signals without breakdown.
The body is zinc die cast with a nickel finish and silver housing color.
Yes, the 031-5633-1010 includes a board lock feature for secure SMT retention and added vibration resistance.
The 031-5538-10RFX is the closest functional equivalent, sharing the same 50 Ohm impedance, 1 GHz frequency, 500 V rating, and bayonet lock, but it ships in Bulk packaging and includes isolated features. Confirm packaging and isolation requirements before substituting.
