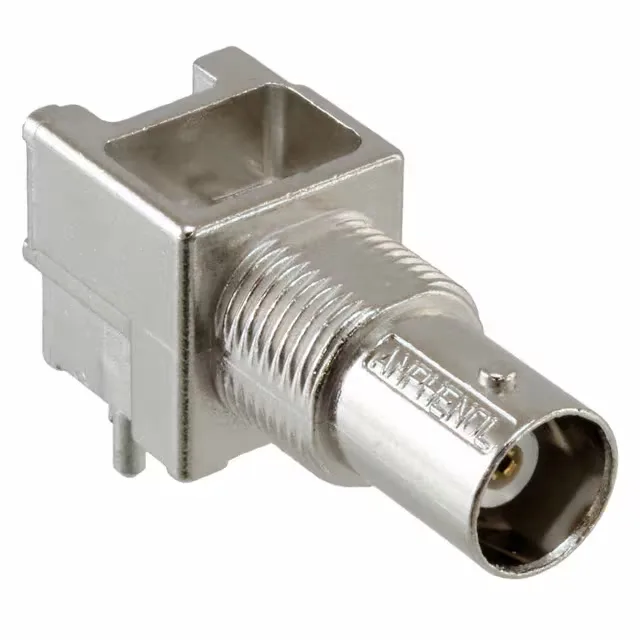

031-5640 — Amphenol product photo
Amphenol

Amphenol RF 031-5640 BNC Jack, 50 Ohm, 1 GHz, Panel Mount

MPN031-5640
Active

Amphenol RF BNC jack, 50 Ohm, 1 port, right-angle panel mount, bulkhead front-side nut, solder termination, 500 mating cycles, 1 GHz, 0.2 dB insertion loss, nickel body, gold center contact.

$5.8800Ref. price · indicative, final on quote
031-5640 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

031-5640 Technical Specifications
ParameterValue
Mounting typePanel Mount, Through Hole, Right Angle
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max1 GHz
Mounting featureBulkhead - Front Side Nut
Operating temperature-55°C~85°C
Body materialZinc Die Cast
Housing colorSilver
Dielectric materialPolypropylene (PP)
Center contact materialPhosphor Bronze
PackageBulk
FeaturesBoard Guide
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

Panel-Mount BNC Jack for 50-Ohm Signal Paths

The 031-5640: It is a single-port, right-angle panel-mount connector with a bulkhead front-side nut — the right-angle body keeps the cable run parallel to the panel face, saving depth in an enclosure. A board guide on the through-hole solder tails aids alignment during PCB insertion.

Shield termination is solder to the shell; the centre contact also terminates with solder. The board guide feature helps locate the connector during wave or hand-solder assembly.

Frequently asked questions

Is 031-5640 a standard 50-ohm BNC jack?

Yes — the 031-5640 is a standard BNC jack, female socket, rated for 50-ohm impedance. It mates with any standard 50-ohm BNC plug.

What is the mounting type of 031-5640?

It is a panel-mount, right-angle connector with a bulkhead front-side nut. The through-hole solder tails are right-angle for PCB mounting.
