Amphenol RF BNC plug, male pin, 50 Ohm, 4 GHz, crimp termination, for RG-8/8A/9/9A/9B/87/213/214/225/302/393, 500 mating cycles, -65°C~165°C, bulk.
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pin |
| Fastening type | Bayonet Lock |
| Voltage rating | 500 V |
| Frequency - max | 4 GHz |
| Cable group | RG-8, 8A, 9, 9A, 9B, 87, 213, 214, 225, 302, 393 |
| Operating temperature | -65°C~165°C |
| Body material | Brass |
| Housing color | Silver |
| Dielectric material | Polyoxymethylene (POM) Acetal |
| Center contact material | Brass |
| Package | Bulk |
| Parameter | Value |
|---|---|

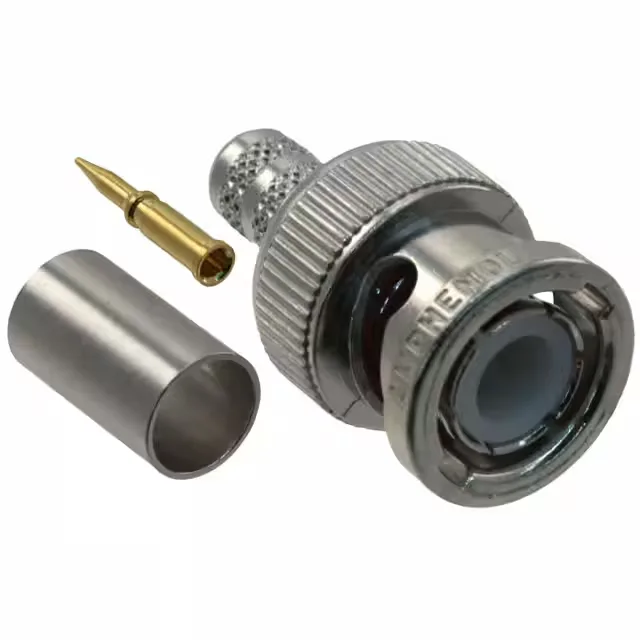

| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule |
| Impedance | 50Ohm |
| Body finish | Nickel |
| Mating cycles | 500 |
| Insertion loss | 0.2dB |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Crimp |
| Center contact plating | Gold |
The 031-5999-RFX: This plug accepts RG-8, 8A, 9, 9A, 9B, 87, 213, 214, 225, 302, and 393 — the larger-diameter RG-series cables used where lower loss over longer runs matters.
The 500 V voltage rating covers typical 50-ohm system voltages with margin.
This plug is compatible with RG-8, 8A, 9, 9A, 9B, 87, 213, 214, 225, 302, and 393 cables. Both centre contact and shield are crimp-terminated.
