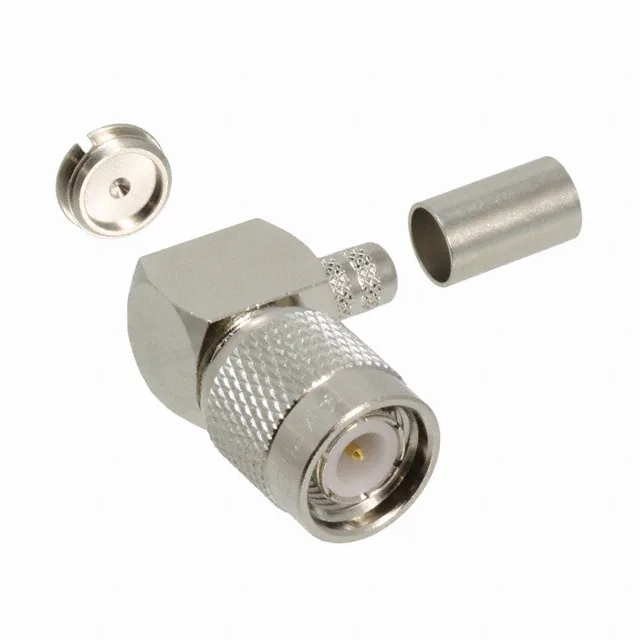

031-6003-RFX — Amphenol product photo
Amphenol

Amphenol RF 031-6003-RFX TNC Plug, 11 GHz, 50 Ohm

MPN031-6003-RFX
Active

Amphenol RF TNC plug, male pin, right-angle, 50 Ohm, 11 GHz, 500 V, solder contact, crimp shield, for Belden 9258/LMR-240, includes end cap and ferrule.

$10.9600Ref. price · indicative, final on quote
031-6003-RFX datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

031-6003-RFX Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line), Right Angle
Connector typePlug, Male Pin
Fastening typeThreaded
Voltage rating500 V
Frequency - max11 GHz
Cable groupBelden 9258, LMR-240
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolyoxymethylene (POM) Acetal
Center contact materialBrass
PackageBulk
Includes3 pcs - 1 Connector, 1 End Cap, 1 Ferrule
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.18dB
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

TNC Right-Angle Plug for 11 GHz RF Links

The 031-6003-RFX: The threaded coupling ensures a vibration-resistant mate, and the 500 mating cycles support field-service reconnections without degrading the gold-plated centre contact. This connector is built for Belden 9258 and LMR-240 cable groups, with a brass body finished in nickel and a polyoxymethylene (POM) acetal dielectric.

How It Compares to 031-2367-RFX

The 031-2367-RFX is a close functional peer: same TNC plug style, same 50 Ohm impedance, 11 GHz max frequency, and 500 mating cycles. The key difference is cable group — 031-2367-RFX targets RG-55, 142 A, and 400, while 031-6003-RFX is for Belden 9258 and LMR-240. Also, 031-2367-RFX uses a crimp contact termination, whereas 031-6003-RFX uses solder for the centre pin. Choose based on your cable type and termination preference.

Frequently asked questions

Where can I buy 031-6003-RFX?

Current pricing and stock levels are confirmed at quote time — submit an RFQ for a firm quote.

What cable does 031-6003-RFX work with?

The 031-6003-RFX is designed for Belden 9258 and LMR-240 cable groups. It is not a generic RG-58 fit; for RG-58 or LMR-195, consider the peer 122108.
