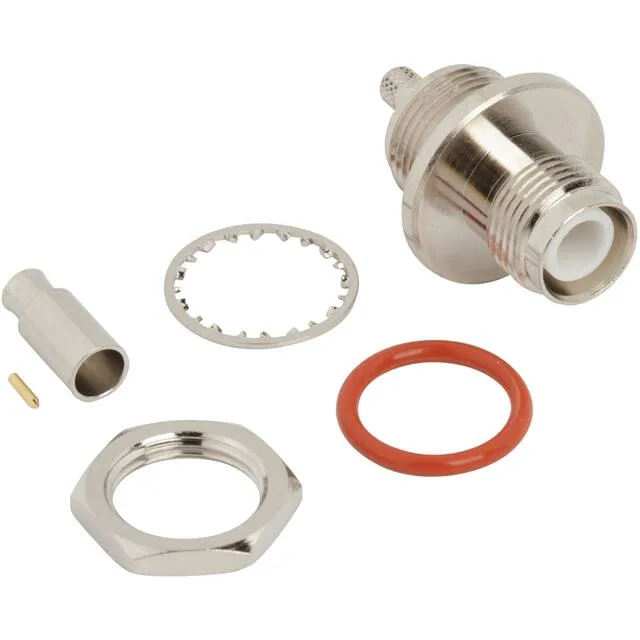

031-6213 — Amphenol product photo
Amphenol

031-6213 RP-TNC Jack, 50 Ohm, 3 GHz, IP67, Bulkhead

MPN031-6213
Active

Amphenol RF 031-6213 RP-TNC jack, male pin, 50 Ohm, bulkhead rear-side nut mount, crimp/solder termination, IP67, 3 GHz, includes mounting hardware kit.

$8.9127Ref. price · indicative, final on quote
031-6213 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

031-6213 Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typeJack, Male Pin
Fastening typeThreaded
Voltage rating500 V
Frequency - max3 GHz
Ingress protectionIP67 - Dust Tight, Waterproof
Mounting featureBulkhead - Rear Side Nut
Cable groupRG-174, 188, 188A, 316, LMR-100, M17/119-RG174
Operating temperature-40°C~85°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialPhosphor Bronze
PackageBulk
Includes6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.18dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp or Solder
Center contact platingGold

Product details

RP-TNC Bulkhead Jack with Hardware Kit

The RP-TNC interface reverses the gender of the centre contact relative to standard TNC: the jack carries the male pin, so the mating plug must have a female socket.

The 031-6213 accepts RG-174, RG-188, RG-188A, RG-316, LMR-100, and M17/119-RG174 cable groups — all common small-diameter 50 Ohm coax. The centre contact can be crimped or soldered; the shield is crimped via the included ferrule.

Sealed and Threaded for Field Duty

The threaded coupling (fastening type) gives a vibration-resistant connection, and the bulkhead mounting with a rear-side nut means the connector body stays fixed while the cable is terminated and the mating plug is cycled.

Frequently asked questions

What is the impedance of 031-6213?

The 031-6213 is a 50 Ohm RP-TNC jack, rated for RF systems up to 3 GHz.

What cable groups work with 031-6213?

It accepts RG-174, RG-188, RG-188A, RG-316, LMR-100, and M17/119-RG174 cable groups.

Does 031-6213 come with all mounting hardware?

Yes, the kit includes the connector, contact, ferrule, gasket, lockwasher, and nut — six pieces total.
