Amphenol 031-6600

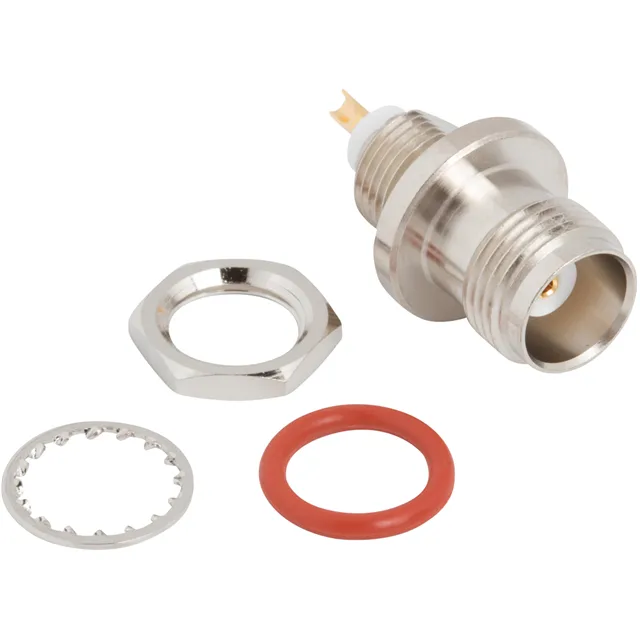

Amphenol RF 031-6600 TNC Jack, 50 Ohm, 6 GHz, IP67

MPN 031-6600
Active

Amphenol RF TNC jack, female socket, 50 Ohm, 6 GHz, IP67, panel mount bulkhead, solder cup, 500 mating cycles, gold-plated beryllium copper center contact, nickel brass body.

$13.1956 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

031-6600 key specifications
ParameterValue
MountingPanel Mount
Connector typeJack, Female Socket
Fastening typeThreaded
Frequency - max6 GHz
IP ratingIP67 - Dust Tight, Waterproof
Mounting featureBulkhead - Rear Side Nut
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk

All specifications

031-6600 additional specifications
ParameterValue
Includes3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Impedance50Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder Cup
Center contact platingGold

Product details

TNC Bulkhead Jack for Outdoor RF Installations

The 031-6600: It is a panel-mount bulkhead connector with a rear-side nut, threaded coupling, and an IP67 rating for dust and water ingress protection.

What the 50 Ohm and 6 GHz Ratings Mean for Your RF Path

The 6 GHz maximum frequency covers the 2.4 GHz and 5 GHz Wi-Fi bands, the 1.5 GHz GPS band, and the 700 MHz to 2.7 GHz cellular bands, but it does not reach into the 6+ GHz bands used by some newer Wi-Fi 6E or 5G mmWave equipment — check your system's top frequency before specifying. The gold-plated center contact and 500-cycle rating mean the connector can handle repeated matings without the contact resistance drifting, which matters when a field technician swaps a damaged cable or a test setup gets cycled daily.

Panel Mount and Solder Cup Termination

The contact termination is a solder cup, meaning you tin the center conductor of your coaxial cable and solder it into the cup at the back of the jack. This is a field-friendly termination method if you have a soldering iron and a steady hand, but it is not as fast as a crimp-style connector for production runs.
