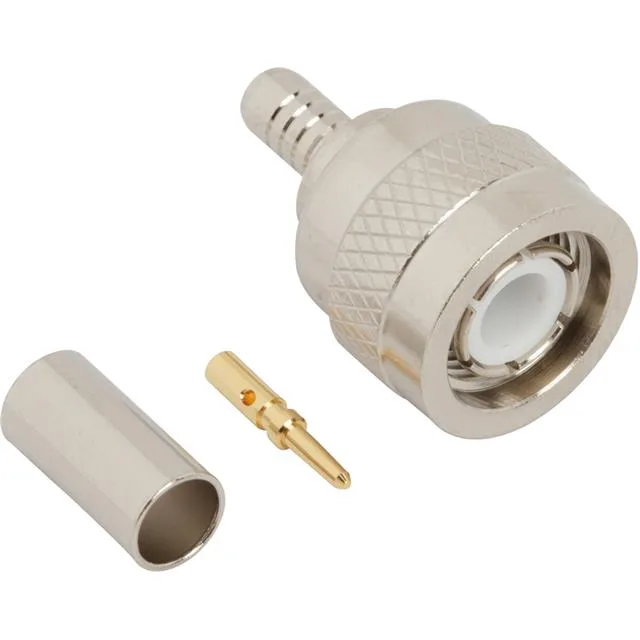

031-6802 — Amphenol product photo
Amphenol

Amphenol RF 031-6802 RP-TNC Plug, 50 Ohm, RG-58, 6 GHz

MPN031-6802
Active

Amphenol RF RP-TNC plug, female socket, 50 Ohm, RG-58 cable group, crimp/solder termination, 6 GHz max, 500 mating cycles, -65°C to 165°C, nickel body.

$14.6400Ref. price · indicative, final on quote
031-6802 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

031-6802 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Female Socket
Fastening typeThreaded
Frequency - max6 GHz
Cable groupRG-58
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialPhosphor Bronze
PackageBag
Impedance50Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

The Amphenol RF 031-6802 is a reverse-polarity TNC (RP-TNC) plug with a female centre socket, designed for field-termination on RG-58 coaxial cable. The RP-TNC interface swaps the gender of the centre contact compared to a standard TNC — the plug body carries the female socket, while the mating jack carries the male pin. This is a common interface in Wi-Fi and ISM-band antenna systems where regulatory requirements dictate reverse polarity. The connector is rated for 50 Ohm impedance and operates up to 6 GHz, covering 2.4 GHz and 5 GHz bands comfortably. It is intended for free-hanging (in-line) use with a threaded coupling nut for vibration-resistant mating.

Termination and cable prep — crimp shield, solder centre

The dielectric is PTFE, which holds up to the 165°C upper operating limit and maintains stable impedance through the cable-to-connector transition.

Durability and environmental range

No gasket or sealing is specified in the listing; for outdoor installations where moisture ingress is a concern, a weatherproof boot or sealed mating jack should be used.

Frequently asked questions

Is the Amphenol RF 031-6802 a 50 ohm or 75 ohm connector?

The 031-6802 is a 50 Ohm connector, as listed in the specification. This matches the standard impedance for RG-58 cable and is the correct choice for 50 Ohm RF systems (Wi-Fi, cellular, ISM-band radios).

What cable does the 031-6802 work with?

It is designed for the RG-58 cable group. The shield is crimped, and the centre conductor is soldered. Prepare the cable per the manufacturer's crimp dimension sheet for RG-58 to ensure proper impedance transition and pull-off strength.

Is 031-6802 a male or female connector?

The connector type is a plug with a female centre socket. In RP-TNC terminology, the plug body has internal threads and the centre contact is a socket (female). It mates with an RP-TNC jack (male centre pin, external threads).
