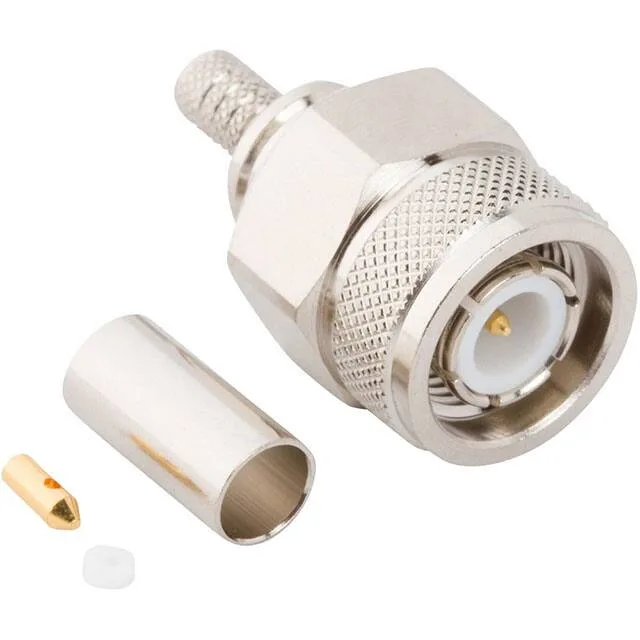

031-6821 — Amphenol product photo
Amphenol

031-6821 Amphenol RF TNC Plug, LMR-195, 50 Ohm, 6 GHz

MPN031-6821
Active

Amphenol RF TNC plug, male pin, 50 Ohm, LMR-195 cable, solder contact, crimp shield, 6 GHz, 500 mating cycles, -65°C~165°C, bulk.

$9.9900Ref. price · indicative, final on quote
031-6821 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

031-6821 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeThreaded
Frequency - max6 GHz
Cable groupLMR-195
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Includes2 pcs - 1 Connector, 1 Ferrule
Impedance50Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

TNC Plug for LMR-195 — 50 Ohm, 6 GHz

The 031-6821: The connector comes as two pieces — the plug body and a separate ferrule — and is terminated by soldering the centre contact and crimping the shield braid. The threaded coupling nut provides vibration-resistant mating, making this a field-reliable choice for outdoor antenna feeds, base station jumpers, and equipment interconnects where the connection must stay tight under mechanical stress.

Cable-Specific Tuning — Why LMR-195 Matters

This plug is dimensionally tuned for LMR-195 cable. Using a different cable shifts the impedance away from 50 Ohm and degrades VSWR above a few hundred MHz.

Termination Sequence — Solder Centre, Crimp Braid

The nickel-plated brass body and gold-plated brass centre contact give good corrosion resistance and support the rated 500 mating cycles.

Frequently asked questions

What cable group does the 031-6821 support?

The 031-6821 is designed for LMR-195 coaxial cable. The centre contact, dielectric support, and ferrule are sized for this specific cable's 0.195-inch outer diameter and foam dielectric. It is not compatible with LMR-400 or RG-58 without changing the connector.

Is the 031-6821 50 Ohm?

Yes, the 031-6821 is a 50 Ohm TNC plug. The 50 Ohm impedance is maintained through the PTFE dielectric support and the cable-specific centre contact geometry matched to LMR-195.
