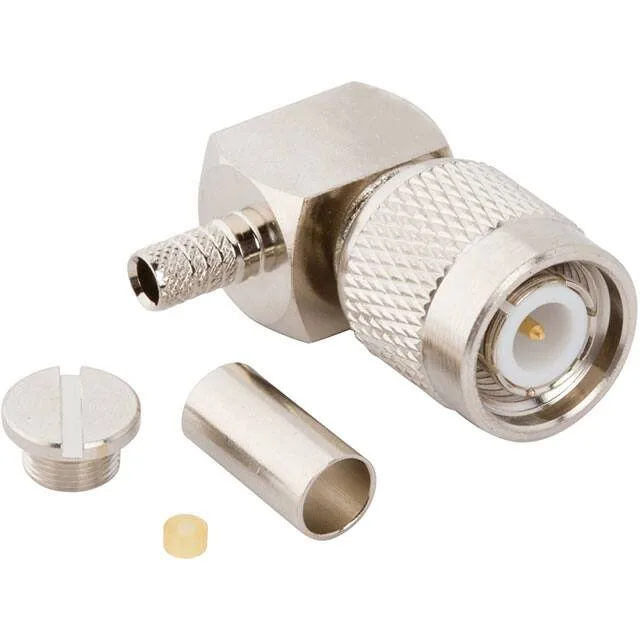

031-6822 — Amphenol product photo
Amphenol

Amphenol 031-6822 TNC Plug, LMR-195, 50 Ohm, 6 GHz

MPN031-6822
Active

Amphenol RF TNC plug, male pin, 50 Ohm, for LMR-195 cable, crimp shield termination, solder contact, right-angle, free-hanging, 6 GHz, 500 mating cycles, nickel body, gold center contact.

$10.7800Ref. price · indicative, final on quote
031-6822 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

031-6822 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line), Right Angle
Connector typePlug, Male Pin
Fastening typeThreaded
Frequency - max6 GHz
Cable groupLMR-195
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Includes2 pcs - 1 Connector, 1 Cap
Impedance50Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

RF Interconnect for LMR-195 Cable Runs

The Amphenol 031-6822 is a TNC plug, male pin, designed specifically for LMR-195 cable — a popular low-loss 50 Ohm coax used in outdoor and in-building distributed antenna systems, Wi-Fi backhaul, and land-mobile radio feeds. It ships as a two-piece kit: the connector body plus a coupling cap, ready for field termination.

The shield is crimped and the centre conductor soldered — a standard field-installable method for LMR-195. The dielectric is PTFE, giving stable phase and low loss up to the 6 GHz ceiling. The threaded fastening ensures a vibration-resistant mate that won't back off under thermal cycling or equipment vibration.

Durability and Operating Range

The single-port design is a straightforward cable-end plug, not a bulkhead or panel jack.

The connector is supplied in Bulk packaging.

Frequently asked questions

What is the Amphenol 031-6822 connector used for?

Buyers need to confirm it fits LMR-195 cable and application before ordering.

Where to buy 031-6822 in stock?

Sourcing buyers need immediate inventory to fill BOM lines without delay.

What is the equivalent or cross reference for 031-6822?

Engineers often need alternative parts when the exact MPN is not available.

Is the 031-6822 connector RoHS compliant?

Compliance is mandatory for many designs and procurement processes.

How many mating cycles does 031-6822 have?

Durability matters for maintenance techs predicting replacement interval.

What is the price of 031-6822 per unit?

Buying decision hinges on cost against budget constraints.
