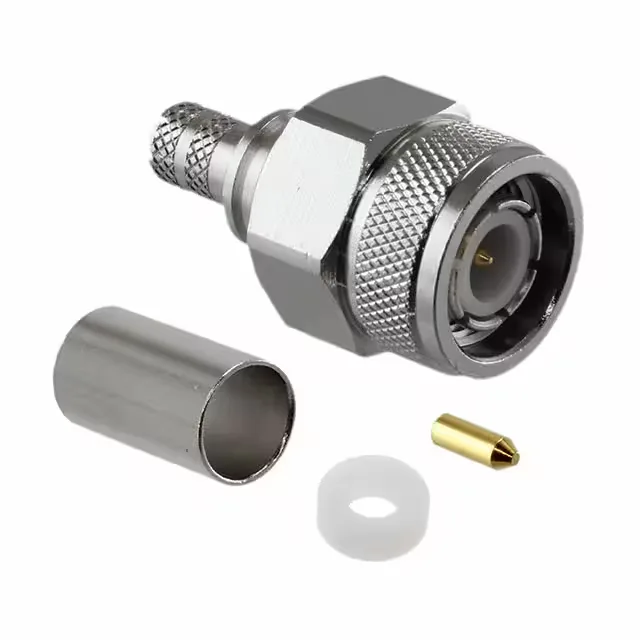

Amphenol RF TNC plug, male pin, 50 Ohm, 6 GHz, for LMR-240 cable, crimp shield / solder center, includes ferrule, bulk pack.
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pin |
| Fastening type | Threaded |
| Frequency - max | 6 GHz |
| Cable group | LMR-240 |
| Operating temperature | -40°C~130°C |
| Body material | Brass |
| Housing color | Silver |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Brass |
| Package | Bulk |
| Includes | 2 pcs - 1 Connector, 1 Ferrule |
| Parameter | Value |
|---|---|
| Impedance | 50Ohm |
| Body finish | Nickel |
| Mating cycles | 500 |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Solder |
| Center contact plating | Gold |
For LMR-240, the crimp die and solder iron are the only tools needed; no special adapters for the cable jacket diameter.
The fastening type is threaded — a standard TNC coupling nut. Hand-tight should seal it for most indoor and protected-outdoor runs; the thread pitch gives good vibration resistance compared to a bayonet.
The 031-6825 is designed for LMR-240 cable.
The 031-6825 is a TNC plug, male pin, 50 Ohm impedance, rated to 6 GHz. It uses a crimp shield and solder center contact termination for LMR-240 cable.
